Clutch Disc Service and Repair for Contour V6
Clutch Disc: Service and Repair
REMOVAL
1. Remove transaxle.
2. Flywheel housing to block dowels can be removed by using a suitable drift pin where the dowel is installed in a drilled hole, and suitable vise grip
pliers where dowel is installed in a blind hole They should be pulled or driven from their seat. Ensure not to damage surface area around dowel.

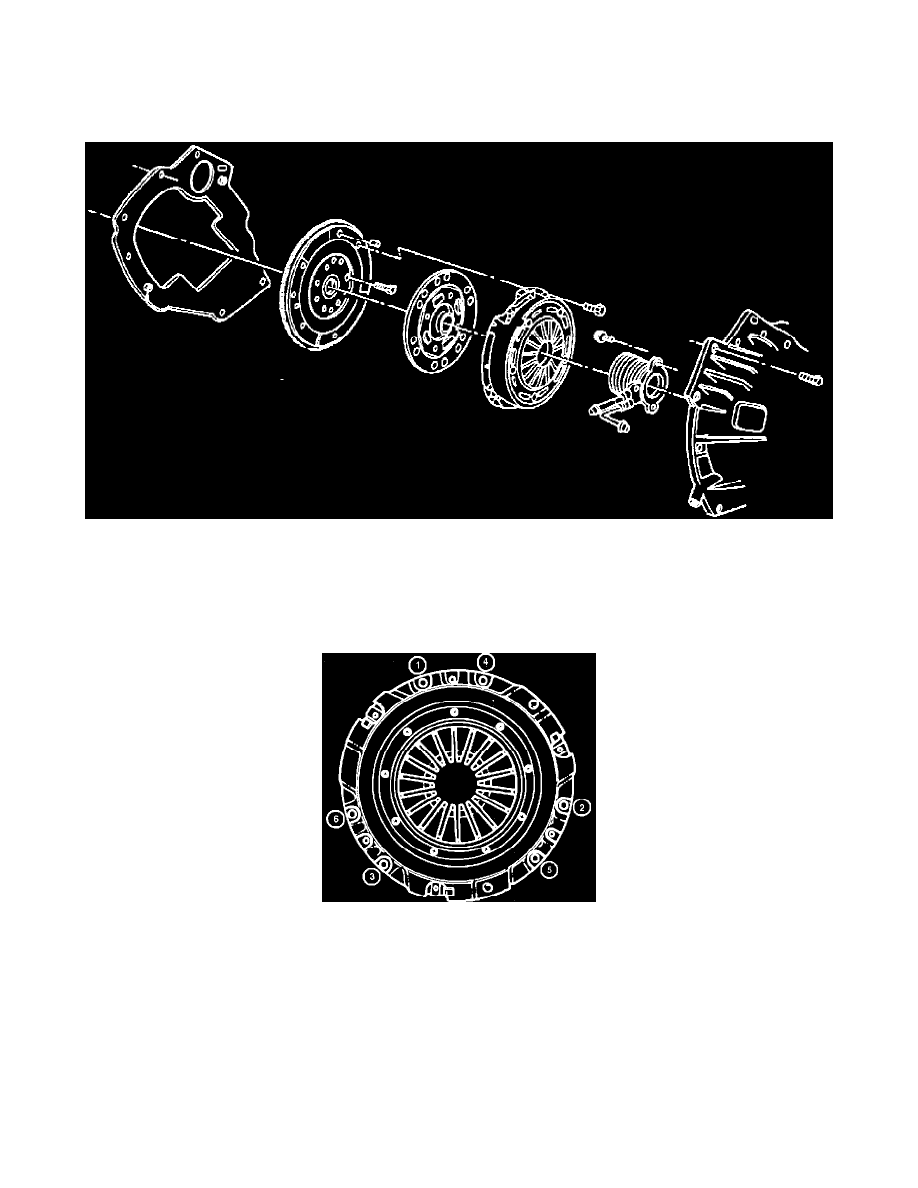

Clutch Assembly
3. Remove clutch assembly.
INSTALLATION
1. Reverse procedure to install. Ensure to use a suitable plastic or brass mallet to drive dowels into block. Do not damage surrounding block surface.
Clutch Pressure Plate Tightening Sequence
2. Tighten pressure plate to flywheel attaching bolts in sequence to 13-18 ft lbs.
