Page 26
background image

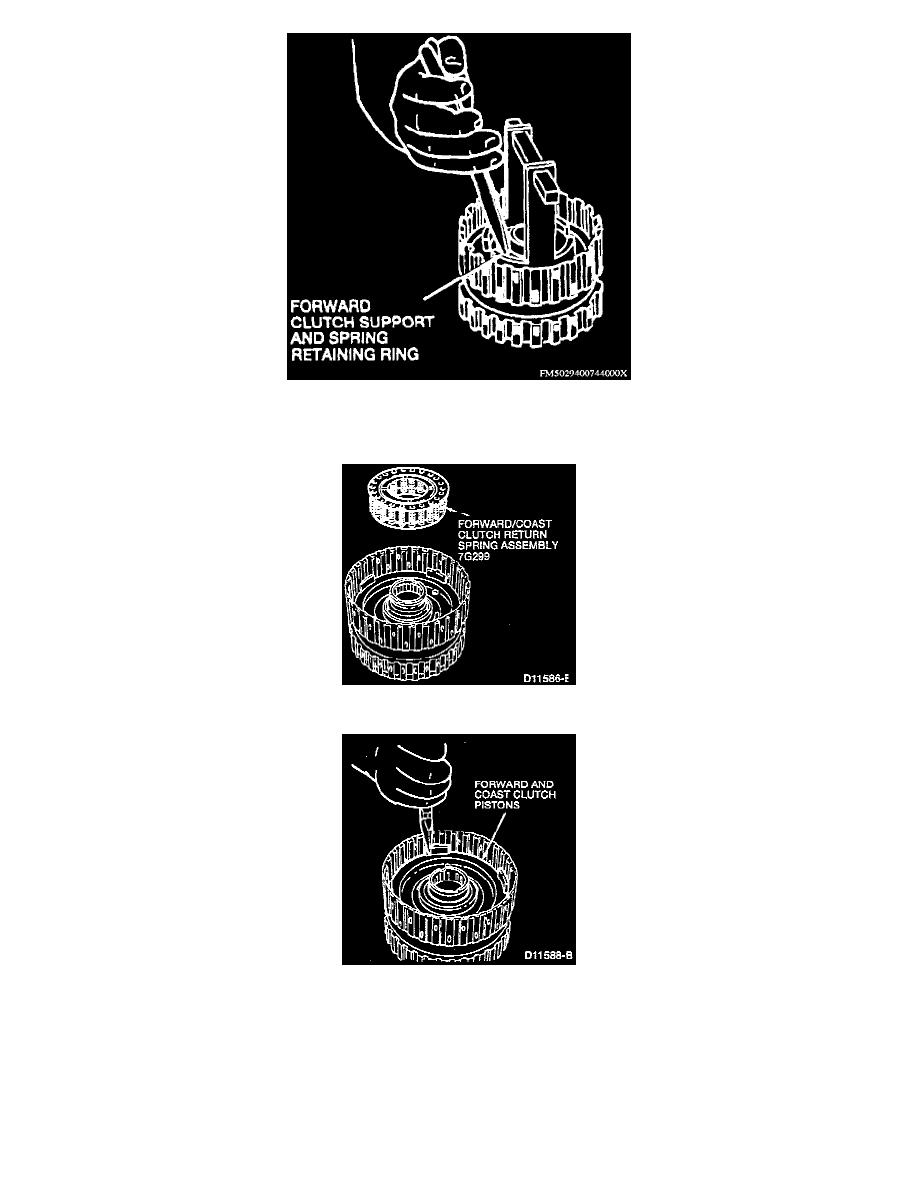

Forward/Coast Clutch Return Spring Compression

12. Use a pair of snap ring pliers to remove the forward clutch spring retaining ring.

13. Remove the spring compressor and the forward/coast clutch return spring assembly.

14. Use a pair of needle nose pliers to remove the forward and coast clutch pistons.
