Crown Victoria V8-4.6L SOHC VIN W (2005)
Evaporator Case: Service and Repair

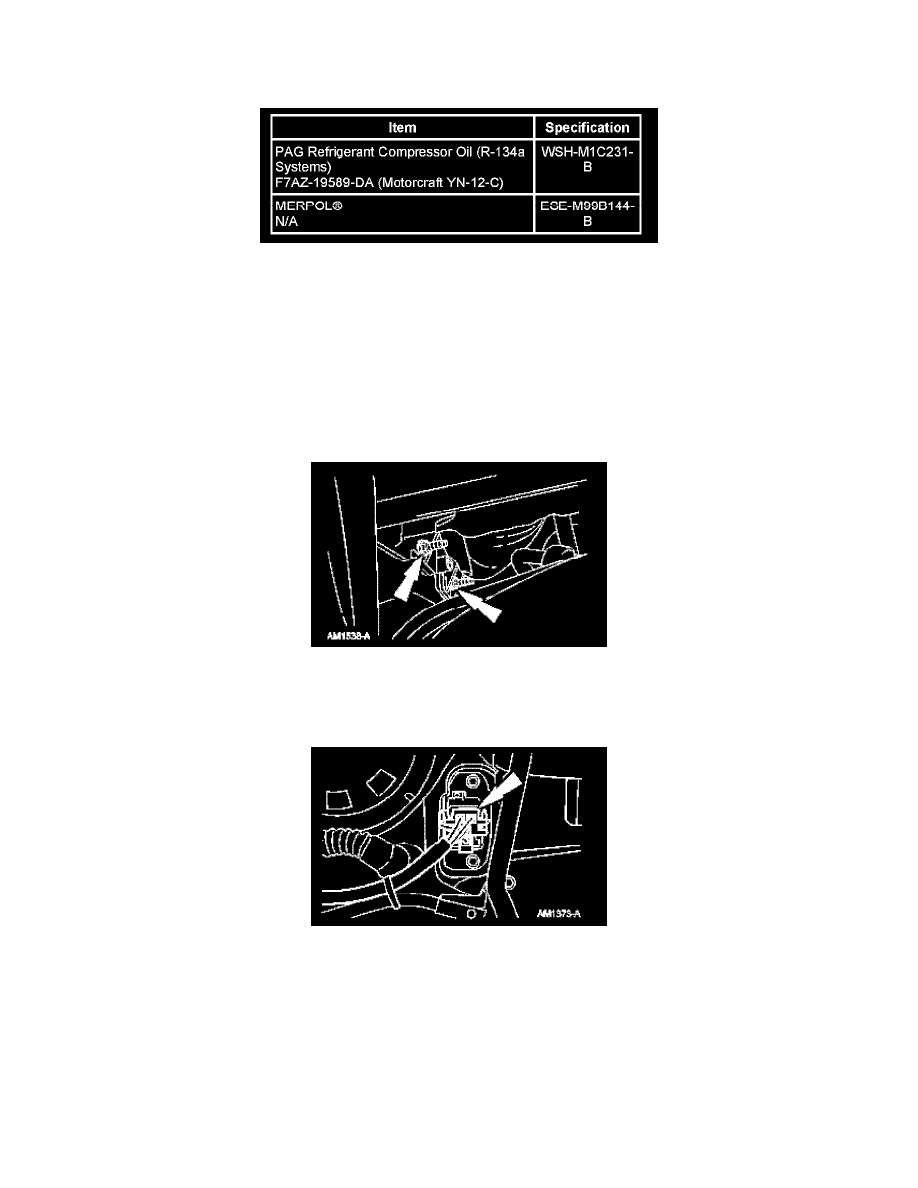

Evaporator Core Housing
Material
Removal and Installation
All Vehicles
1. Recover the refrigerant.
WARNING: If equipped with fire suppression system, depower the system.
2. Remove the RH fender splash shield.
3. Remove the nuts.
4. Lower the vehicle.
Vehicles with manual A/C
5. Disconnect the blower motor resistor electrical connector.
Vehicles with EATC
