Crown Victoria V8-4.6L SOHC VIN W (2005)
Housing Assembly HVAC: Service and Repair
PLENUM CHAMBER
Removal and Installation
1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Removal and
Installation, See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Removal and Installation

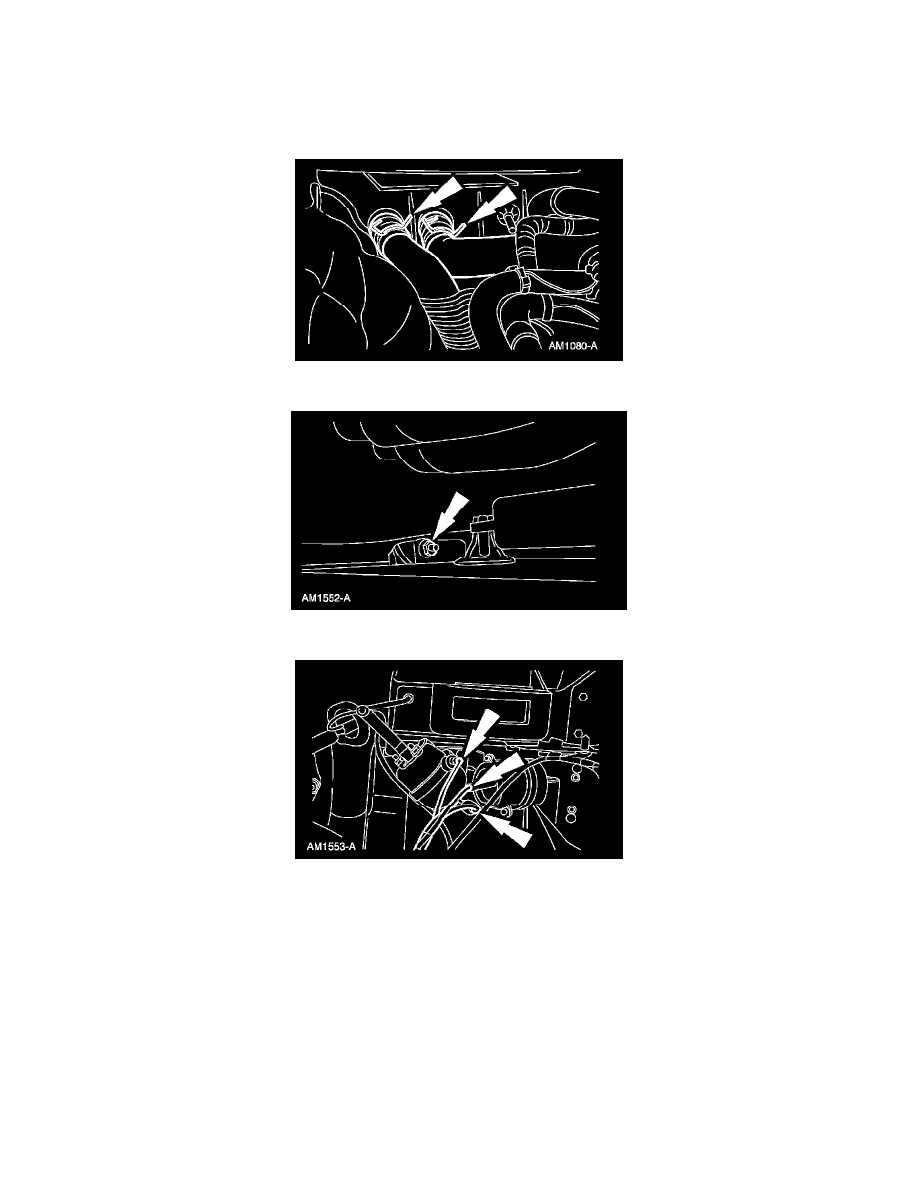

2. Clamp-off and disconnect the heater hoses.
3. Inside the vehicle, remove the nut.
4. NOTE: Mark the locations of the vacuum hoses.
Disconnect the vacuum hoses.
