Crankshaft Main Bearing Seal: Diagrams

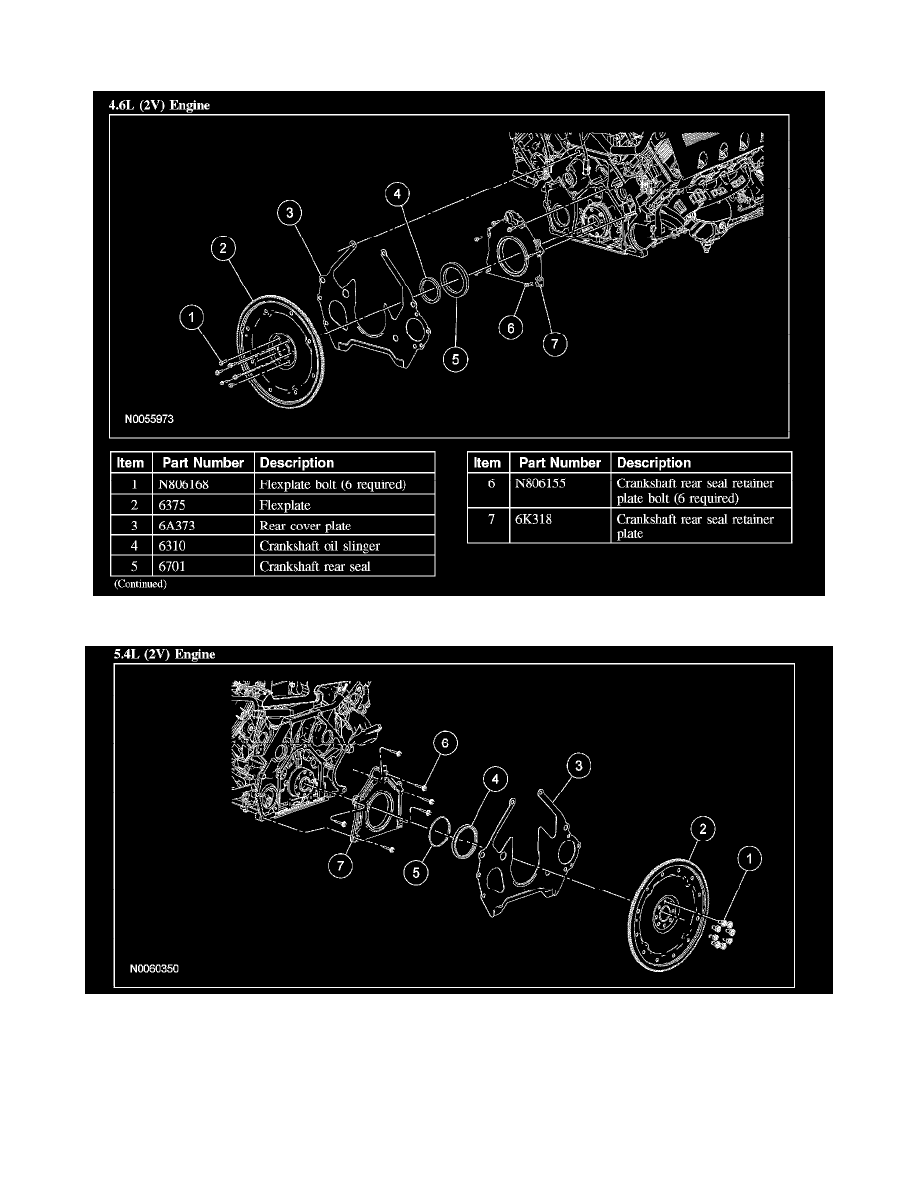

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View

4.6L (2V) Engine

5.4L (2V) Engine (Part 1)
