E 250 V8-4.6L SOHC VIN W (2004)

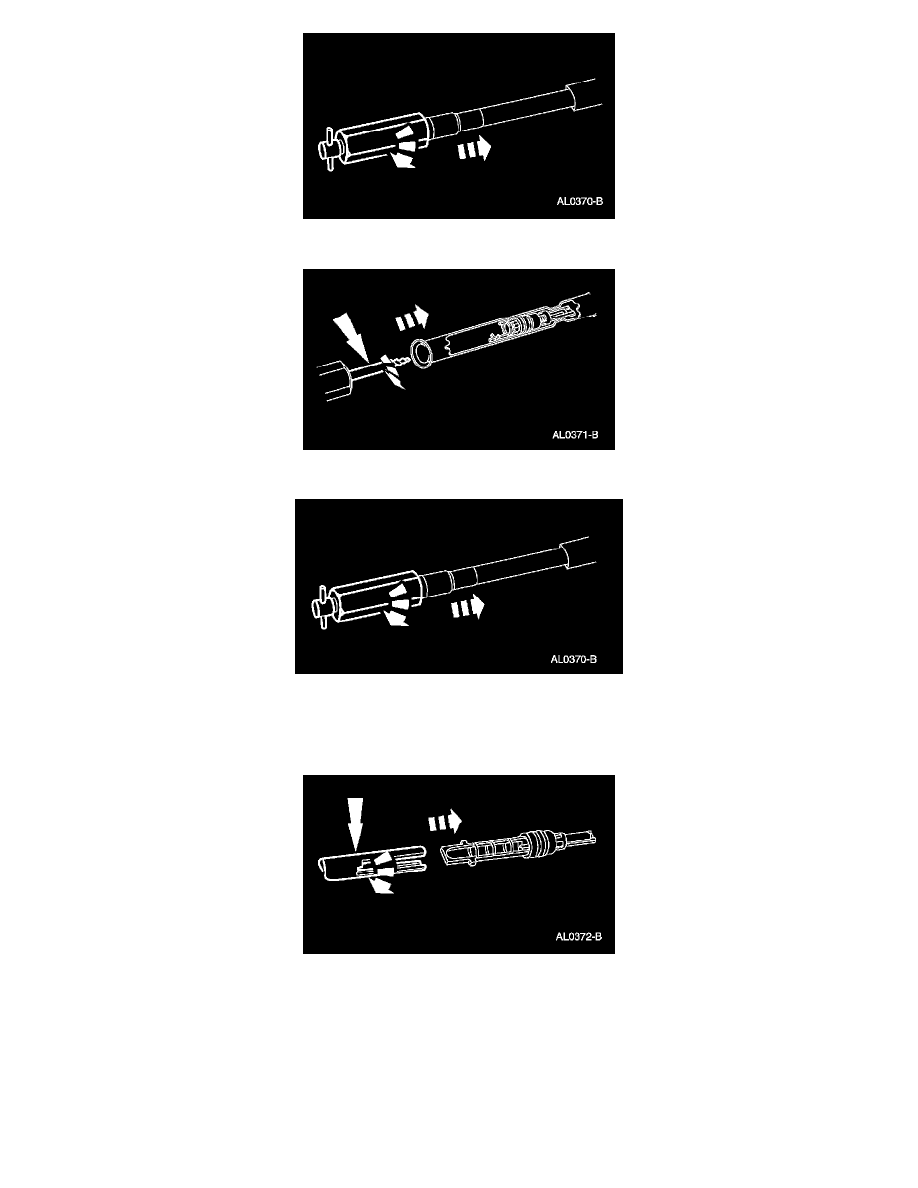

3. Hold the tool T-handle stationary and rotate the tool body to remove the A/C evaporator core orifice.
4. To remove a broken A/C evaporator core orifice, screw the end of the Broken Orifice Extractor into the broken A/C evaporator core orifice.
5. Hold the tool T-handle stationary and rotate the tool body to remove the broken A/C evaporator core orifice.
INSTALLATION
1. Lubricate and install the O-ring seals on the A/C evaporator core orifice in clean PAG oil.
2. Place the A/C evaporator core orifice into the Fixed Orifice Tube Tool.
