Expansion Block/Orifice Tube|Description and Operation|Page 7350 > < Expansion Block/Orifice Tube|Description and Operation|Page 7348

E 250 V8-4.6L SOHC VIN W (2004)

Page 3
background image

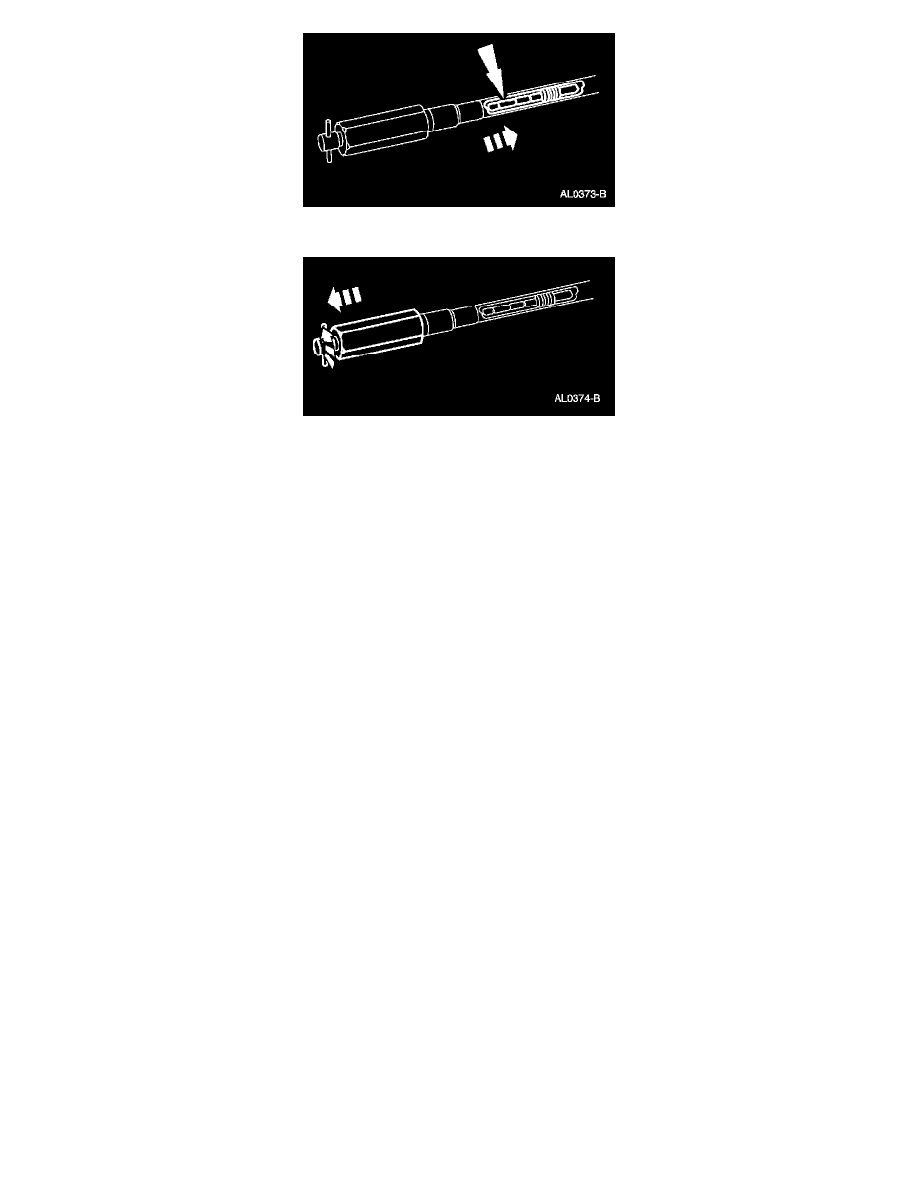

3. Insert the A/C evaporator core orifice into the condenser to evaporator tube until seated.

4. Remove the Fixed Orifice Tube Tool.
5. Install the condenser to evaporator tube.

Expansion Block/Orifice Tube|Description and Operation|Page 7350 > < Expansion Block/Orifice Tube|Description and Operation|Page 7348
