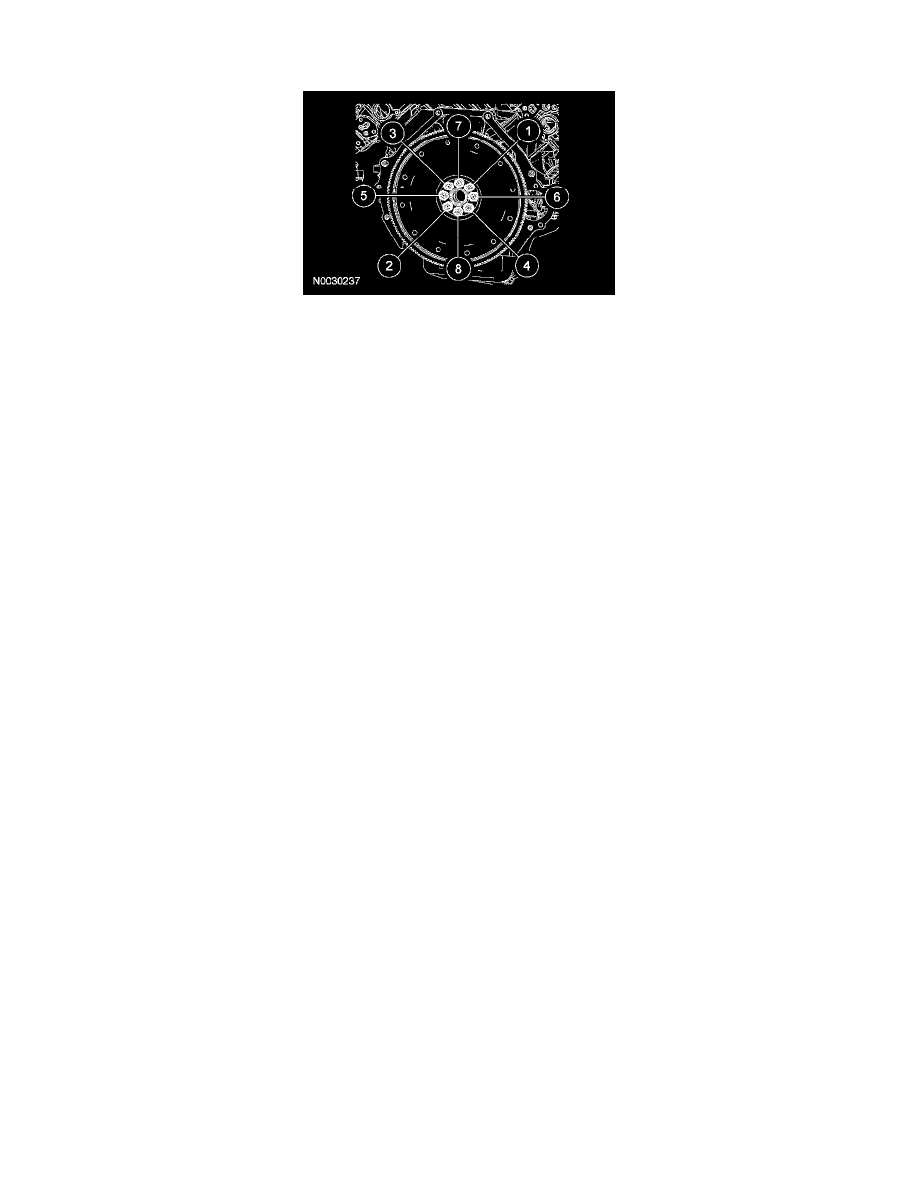

Flex Plate: Specifications

Flexplate Bolts

First pass ...............................................................................................................................................................................................  20 Nm (15 ft. lbs).
Final pass ..............................................................................................................................................................................................  80 Nm (59 ft. lbs).
