Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

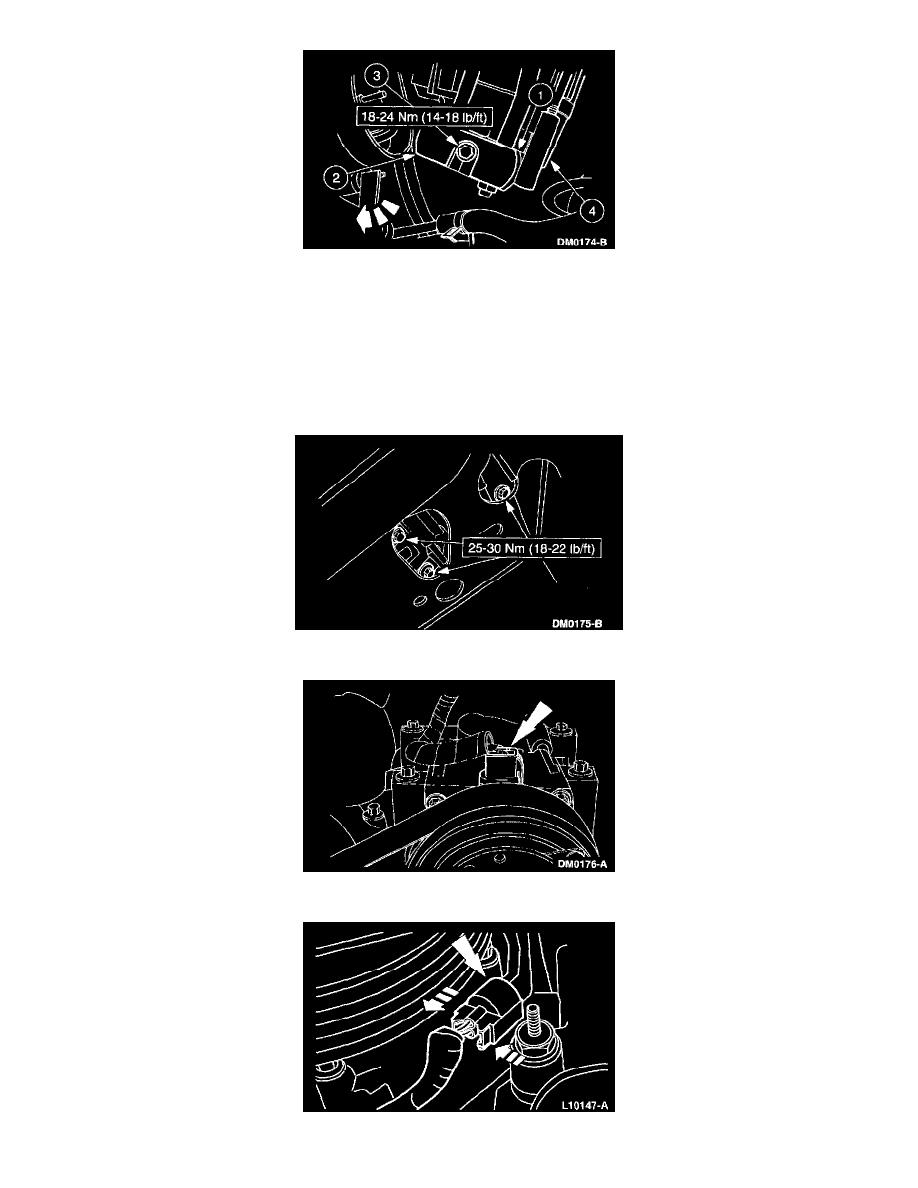

2. Install the A/C manifold and tube.
1
Lubricate the new A/C manifold O-ring seals with PAG compressor oil, YN-12c, F7AZ-19589-DA, or equivalent meeting Ford specification
WSH-M1C231-B and install the O-ring seals on the A/C compressor.
2
Install the A/C manifold and tube.
3
Apply Pipe Sealant with Teflon(R) D8AZ-19554-A or equivalent meeting Ford specification WSK-M2G350-A2 to the threads of the A/C
manifold retaining bolt and install the bolt.
4
Slide the A/C compressor to the rear.
CAUTION: Support the A/C compressor while removing the A/C manifold and tube to prevent injury or A/C compressor damage.
3. Install the bolts.
4. Connect the A/C clutch electrical connector.
5. Connect the crankshaft position sensor connector.
