Ford Econoline E250 V8-46L SOHC VIN W Service & Repair Manual

Axle Beam|Page 6685 > < Axle Beam|Page 6683
Page 6
background image

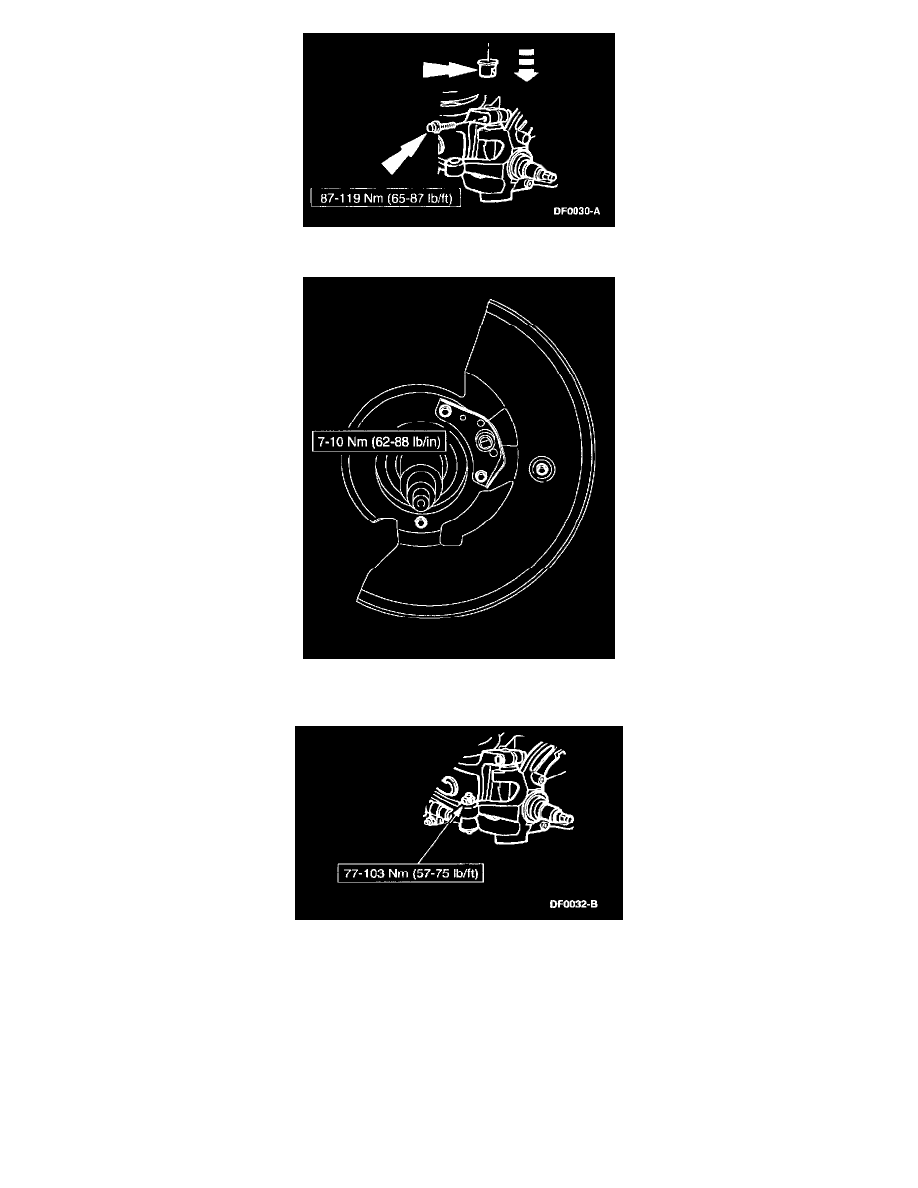

10. Install the camber adjuster and pinch bolt.

11. Install the brake disc shield.
12. Install the brake disc and hub and the disc brake caliper.

13. Using a new cotter pin, install the tie rod end in the front wheel spindle.
14. Install the tire and wheel assembly.
