Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
1

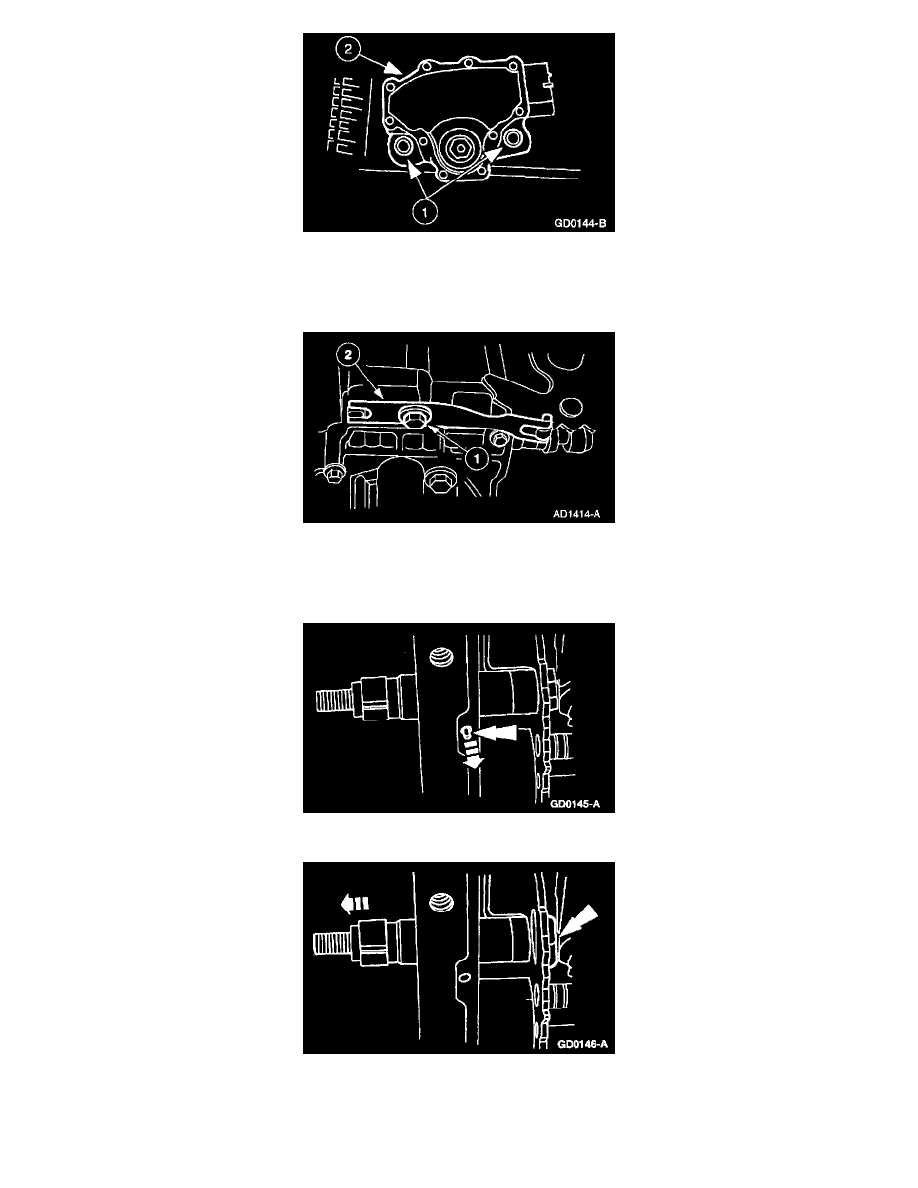

Remove the two bolts.
2
Remove the digital TR sensor.
8. Remove the manual control valve detent lever spring.
1
Remove the bolt.
2
Remove the manual control valve detent lever spring.
9. Note: Use a shop cloth to protect the transmission case surface.
Remove the manual lever shaft retaining pin.
10. Remove the inner manual control lever shaft nut and slide the manual control lever shaft out of the case.
11. Remove the parking lever actuating rod.
