Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

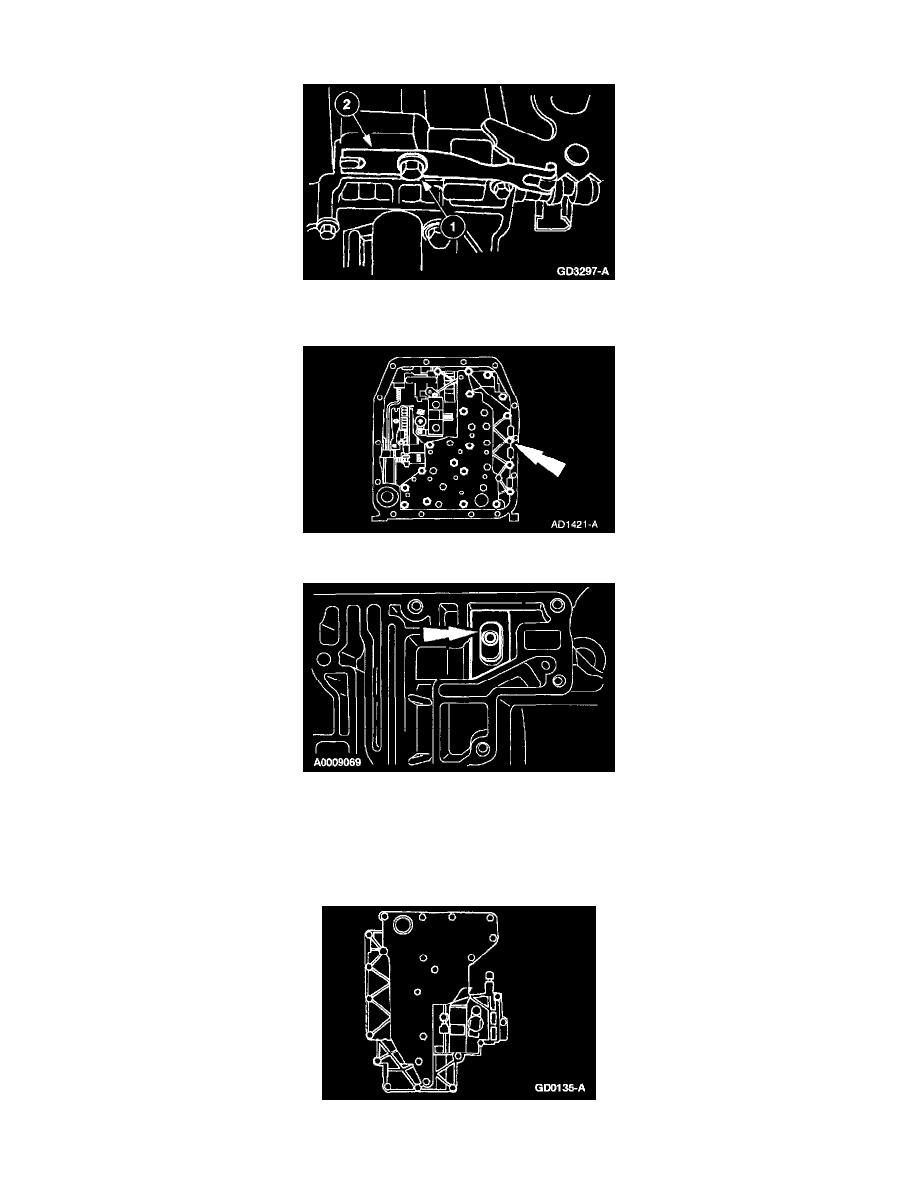

4. Remove the manual control valve detent lever spring.
1
Remove the bolt.
2
Remove the manual control valve detent lever spring.
5. Remove the 23 valve body to case bolts.
6. Remove the main control valve body and discard the pump outlet screen.
Installation
1. Note: Make sure that the drive pin of the manual valve detent lever assembly engages the manual valve in the proper location prior to installing
the bolts.
Position the main control valve body gasket and main control valve body using the two alignment bolts as a guide.
