Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

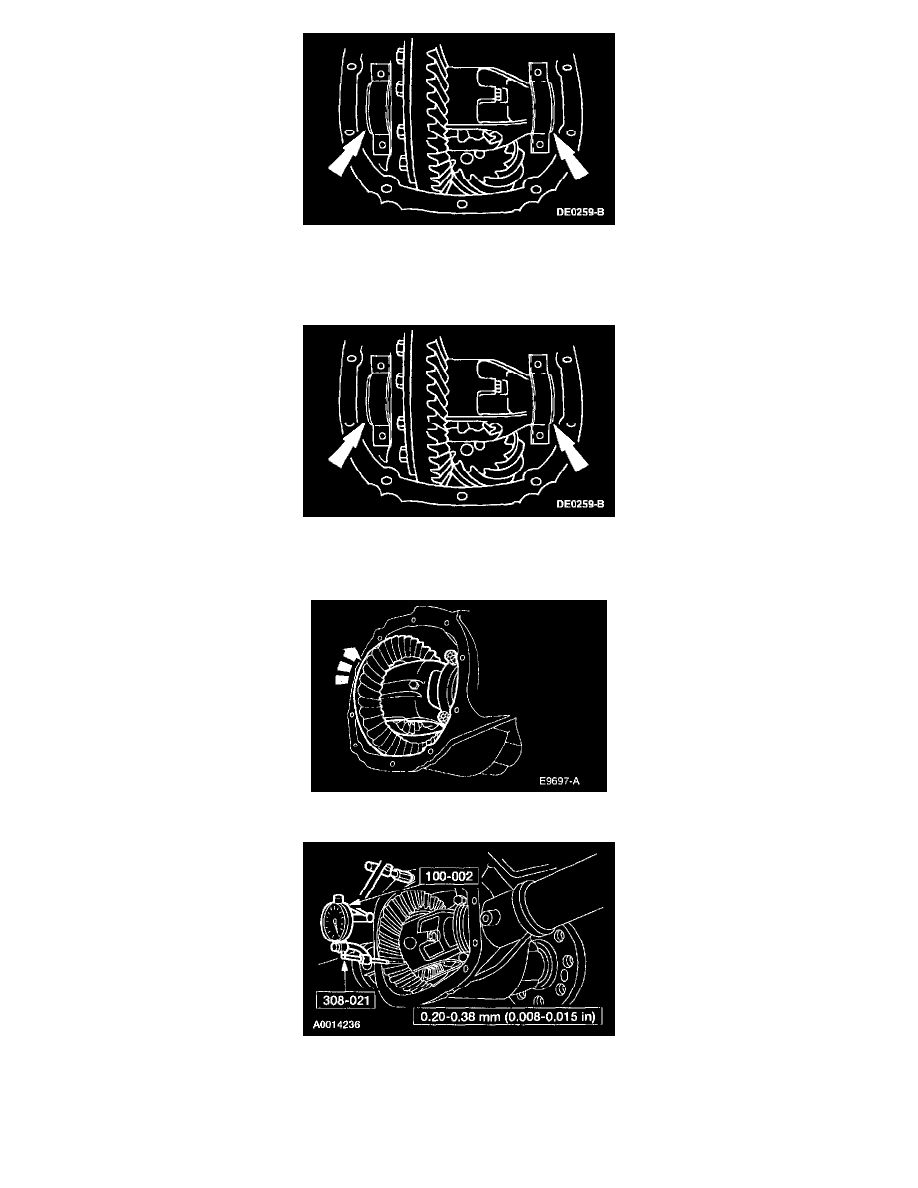

10. If a zero backlash condition occurs, add 0.51 mm (0.020 inch) to the RH side and subtract 0.51 mm (0.020 inch) from the LH side to allow
backlash indication. Measure the backlash.
Backlash not within specification
11. To increase or decrease backlash, remove the bearing caps and install a thicker shim and a thinner shim accordingly.
-
If backlash is not within the specification, increase the thickness of one differential bearing shim and decrease the thickness of the other
differential bearing shim by the same amount.
12. Rotate the differential assembly several times to verify that the differential bearings seated correctly.
13. Using the special tools, recheck the backlash.
-
If backlash is within the specification, refer to Backlash within specification. If backlash is not within the specification, repeat Backlash not
within specification.
-
The specification shown is the full allowable range.
