Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Backlash within specification

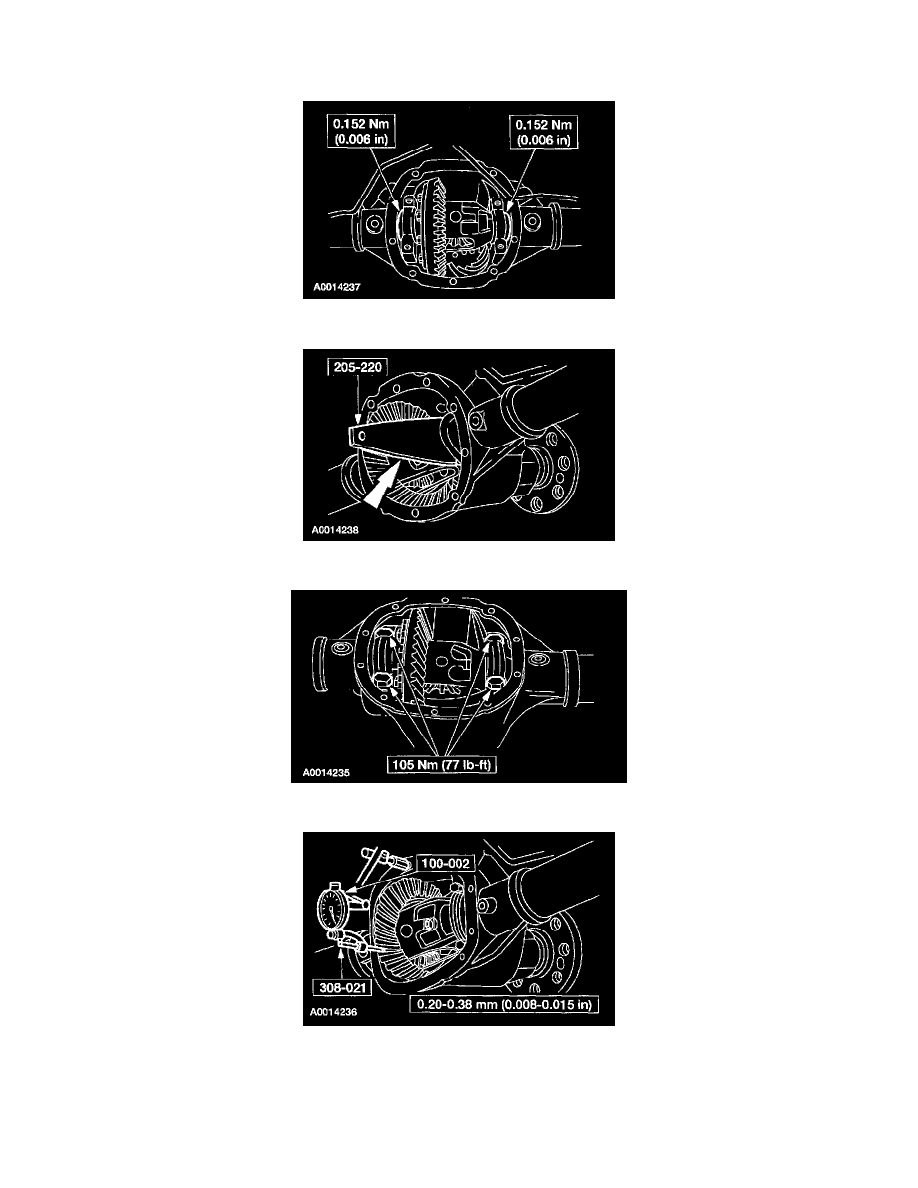

14. Remove the bolts and the bearing caps.
15. To establish differential bearing preload, increase both left and right differential bearing shim sizes by the specification shown.
16. Using the special tool, fully seat the differential bearing shims. Make sure the assembly rotates freely.
17. Install the bearing caps and bolts.
18. Using the special tools, recheck the backlash.
The specification shown is the full allowable range.
19. Install the axle shafts.
Differential Case and Ring Gear-Conventional
