Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

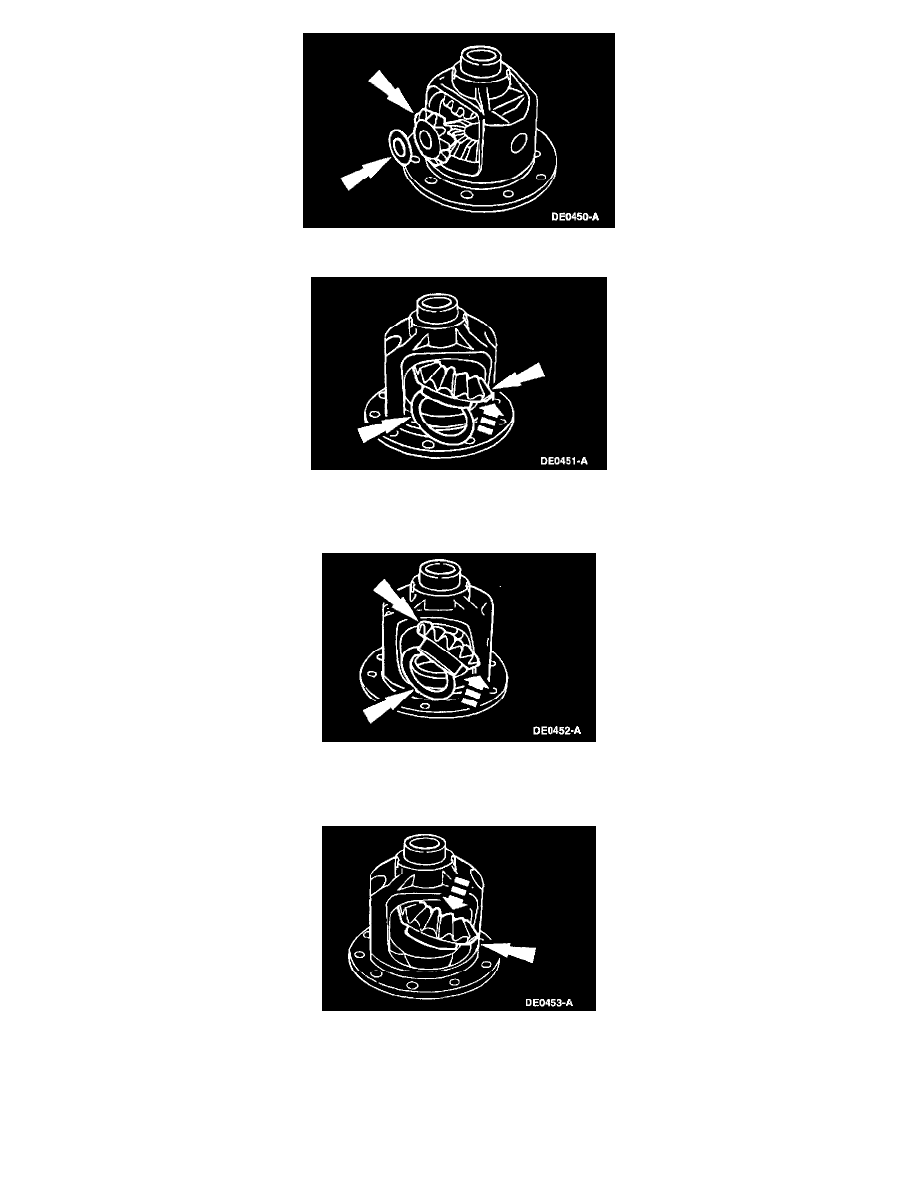

8. Rotate and remove the differential pinion gear and differential pinion thrust washer.
9. Remove the differential side gear and the differential pinion thrust washer.
Assembly
1. Use Motorcraft Synthetic Rear Axle Lubricant F1TZ-19580-B meeting Ford specification WSL-M2C192-A to lubricate the differential side gear
thrust washer and the differential side car journals.
-
Position the differential side gear thrust washer on the differential side gear.
2. Position the differential side gear.
