Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
bearings for assembly. If the runout is still excessive, a new differential case must be installed.
Installation
All vehicles

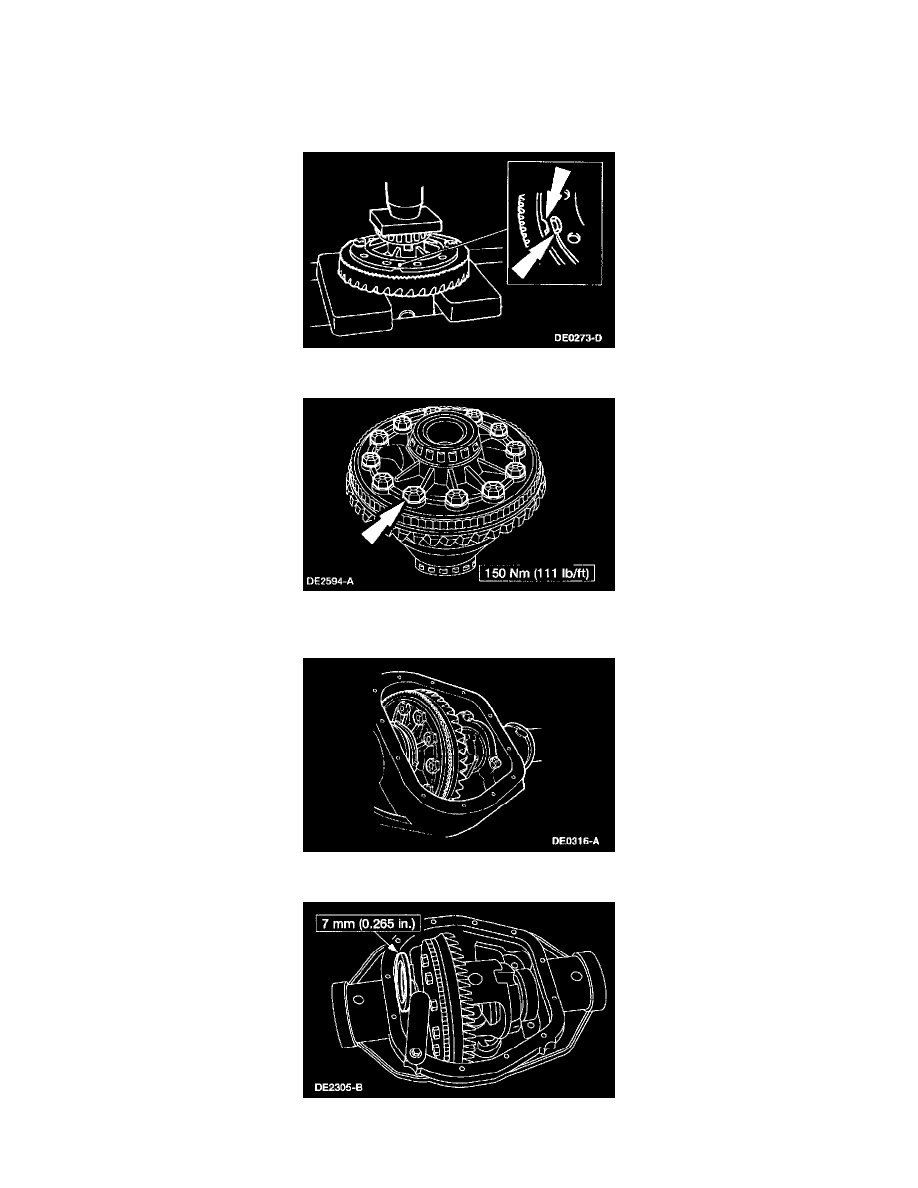

1. CAUTION: Make sure that the notches on the case flange and the anti-lock speed sensor ring are aligned.
Press the ring gear and, if removed, a new anti-lock speed sensor on the differential case.
2. Install the bolts.
-
Apply Stud and Bearing Mount E0AZ-19554-BA or equivalent meeting Ford specification WSK-M2G349-A1 to the ring gear bolts.
3. With pinion depth set and the pinion installed, place the differential case in the rear axle housing.
4. Install a shim on the left side.
