Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

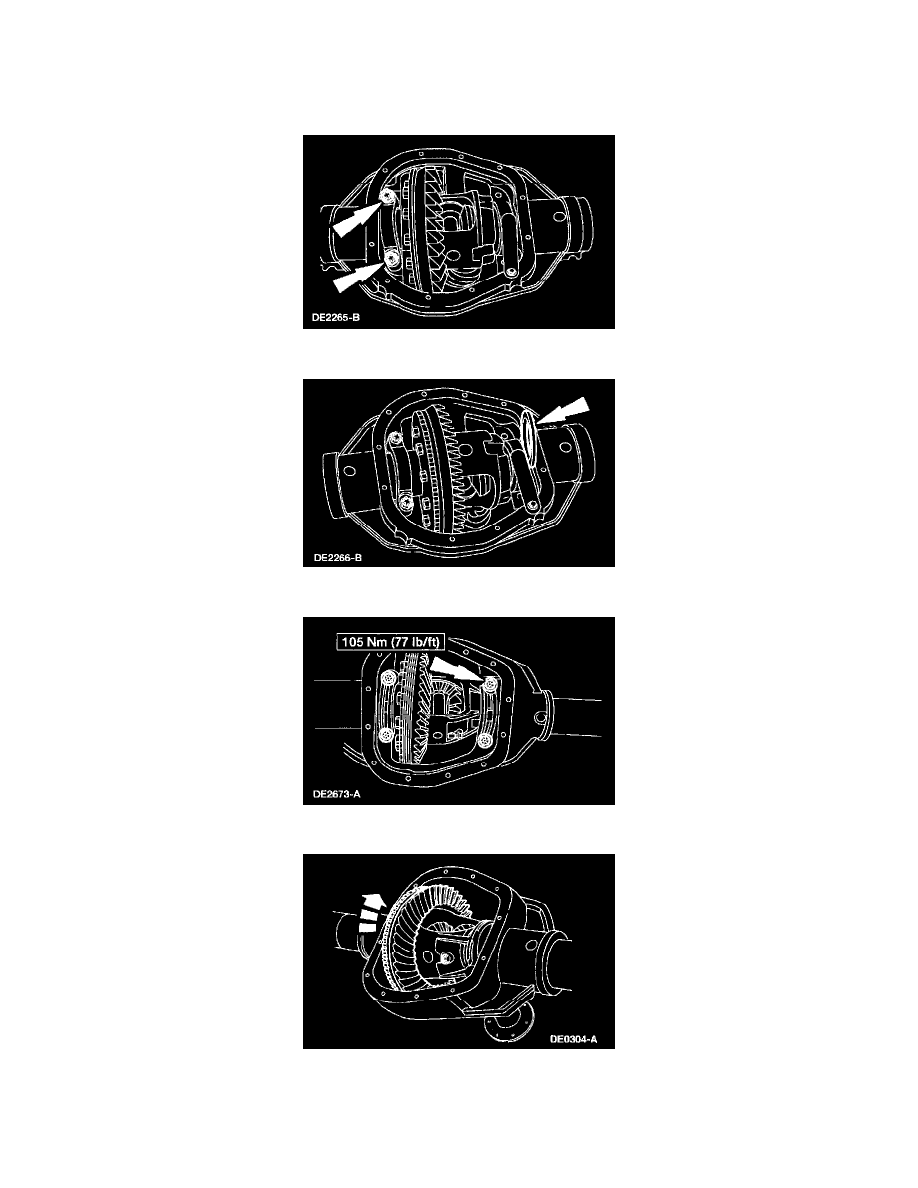

5. CAUTION: Mark the position of the bearing caps as arrows may not be visible. The bearing caps must be installed in their identical
locations and positions.
Note: Apply pressure toward the left side to make sure the left bearing cap is seated.
Install the left bearing cap, and loosely install the bearing cap bolts.
6. Install progressively larger shims on the right side until the largest shim selected can be assembled by hand.
7. Install the right side bearing cap, and tighten the bolts.
8. Rotate the differential case to make sure it rotates freely.
Measure backlash
