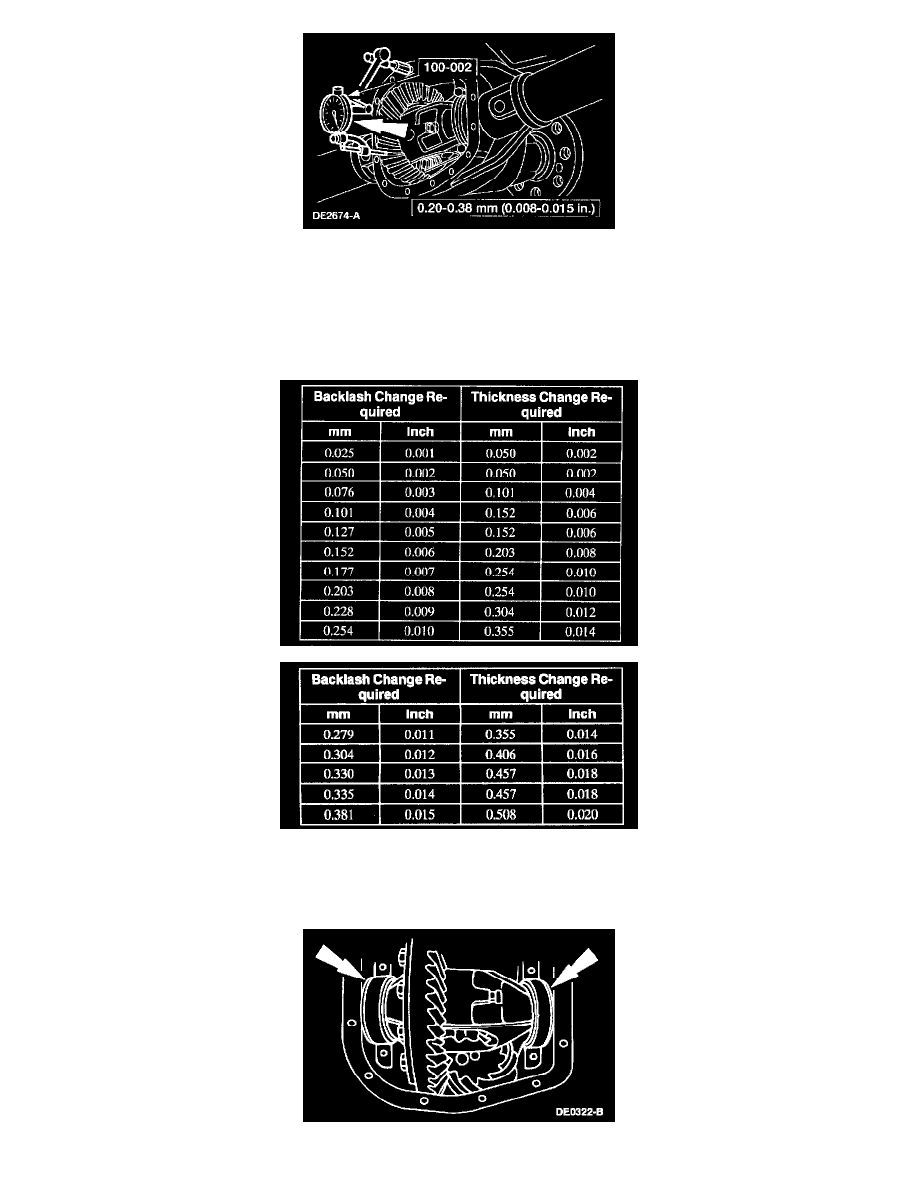

9. Using the special tool, measure ring gear backlash.
-
If the backlash is within specification, go to Backlash within specification. The specification shown in the illustration is the total allowable
range.
-
If a zero backlash condition occurs, go to Zero backlash.
-
If the backlash is not within specification, go to Backlash not within specification.
Zero backlash
10. If a zero backlash condition occurs, add a 0.50 mm (0.020 inch) shim to the RH side and subtract 0.50 mm (0.020 inch) from the LH side to allow
backlash indication. Check backlash.
Backlash not within specification
