Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

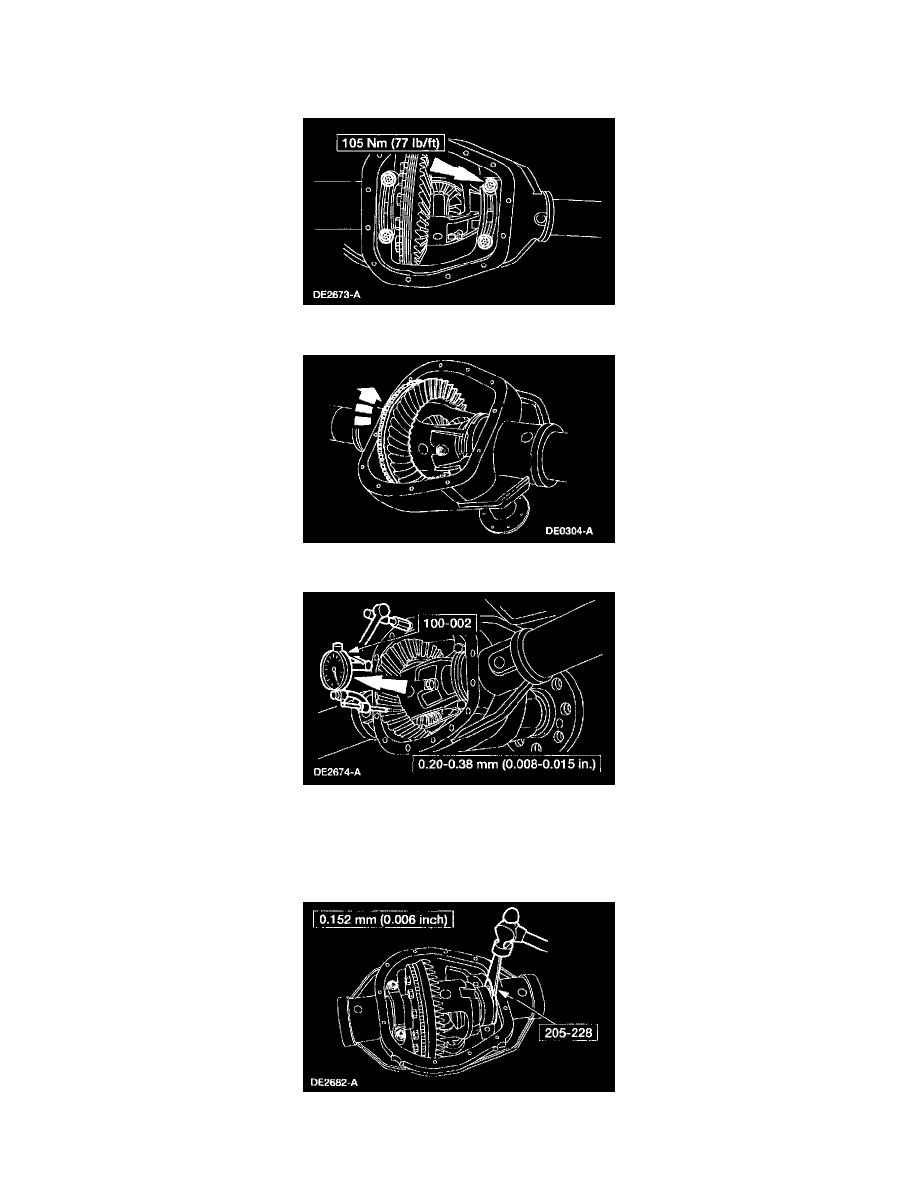

11. To increase or decrease backlash, remove the bearing caps, and install a thicker shim and a thinner shim as shown.
-
If backlash is not within specification, correct by increasing the thickness of one differential bearing shim and decreasing the thickness on the
other differential bearing shim by the same amount.
12. Install the bearing caps and bearing cap bolts.
13. Rotate the differential several times to make sure the differential bearings are correctly seated.
14. Using the special tool, recheck the backlash.
-
If backlash is within specification, go to Backlash within specification in this procedure. If not, go to Measure backlash in this procedure.
-
The specification shown in the illustration is the total allowable range.
Backlash within specification
15. Remove the bearing caps and bolts.
-
To establish differential bearing preload, increase both left and right shim sizes by the specification shown in the illustration.
