Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
1

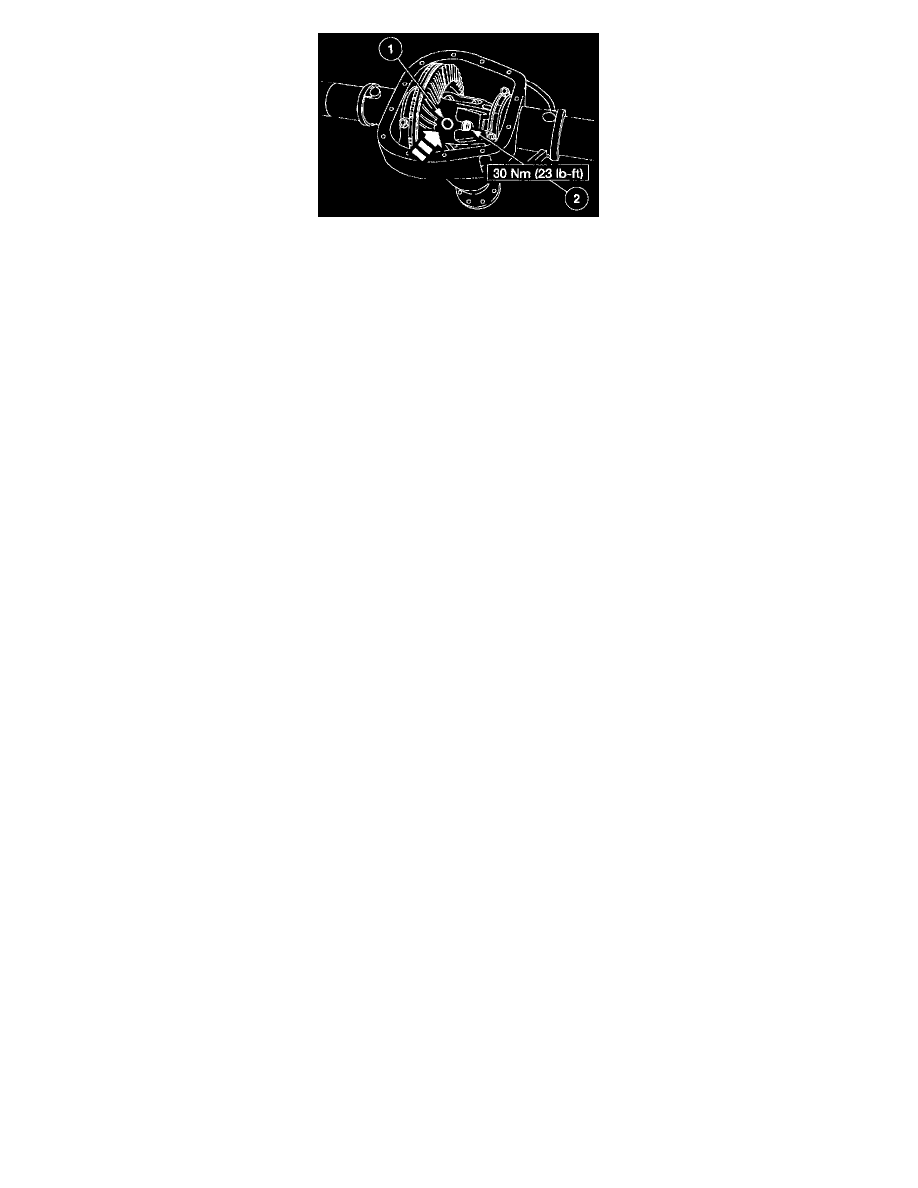

Align the hole in the differential pinion shaft with the case lock bolt hole.
2
Install a new lock bolt.
5. Install the rear brake drums.
6. Install the differential housing cover and fill the rear axle housing with 2.4 liters (5.5 pints) of SAE 75W-140 High Performance Rear Axle
Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.
7. Install the tire and wheel assembly.
8. Lower the vehicle.
