Econoline E450 V10-6.8L VIN S (1999)
Alignment: Specifications
Alignment Specifications
Caster
LH ............................................................................................................................................................................................................. 4.0° ± 2.75°
RH ............................................................................................................................................................................................................. 4.5° ± 2.75°
Total/Split .................................................................................................................................................................................................. -0.5° ± 1.0°
Camber
LH ............................................................................................................................................................................................................... 0.5° ± 0.5°
RH ............................................................................................................................................................................................................... 0.5° ± 0.5°
Total/Split ...................................................................................................................................................................................................... 0° ± 0.5°
Toe (Positive Value Is Toe-in, Negative Value Is Toe-out)
Total/Split ............................................................................................................................................................................................... 0.06° ± 0.25°
Dogtracking - Maximum (Centerline of front tires
compared to centerline of rear tires) ............................................................................................................................................... 30 mm (1.25 inch)
Clear Vision (Negative value
is counterclockwise) .......................................................................................................................................................................................... 0° ± 3°
Vehicle Lean (Side-to-Side Height Differences)
Front Wheel Opening - Maximum .................................................................................................................................................... 15 mm (5/8 inch)
Rear Wheel Opening - Maximum ..................................................................................................................................................... 20 mm (3/4 inch)

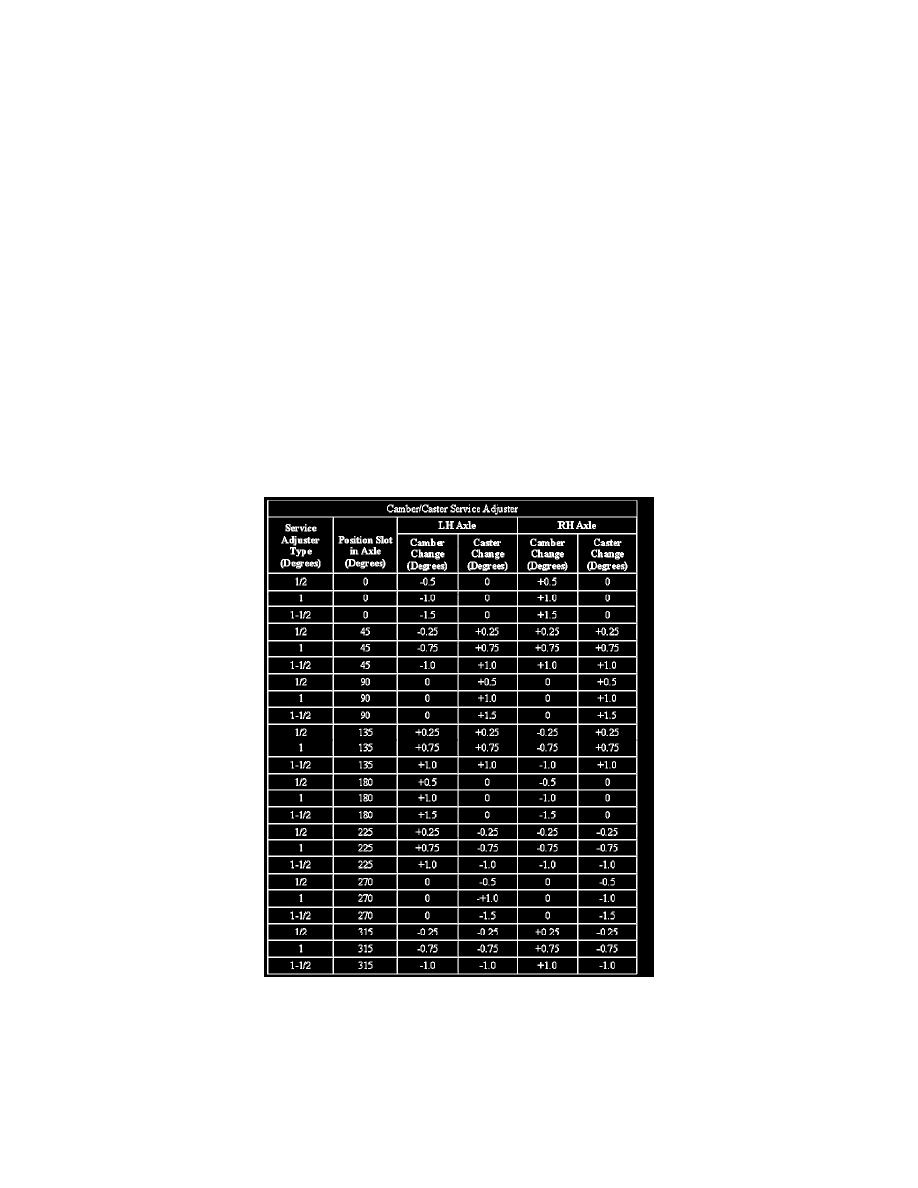

Camber/Caster Service Adjuster
