Drive Belt: Diagrams
- Make
- Ford
- Model
- Escape 2WD
- Engine
- V6-3.0L
- Year
- 2009
- Section
- Drive Belt › Diagrams
MaintenanceDiagrams
Drive Belt: Diagrams

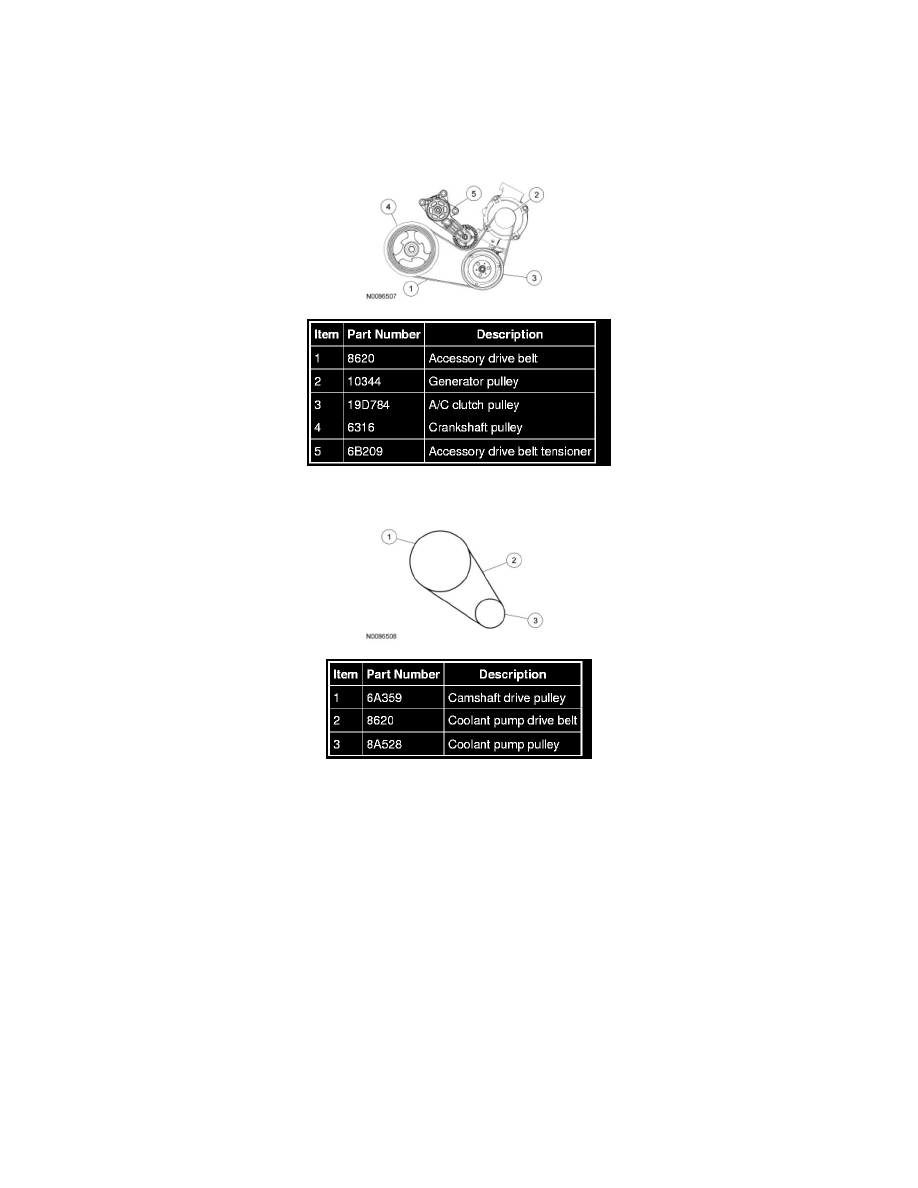

Accessory Drive
Accessory Drive Belt Routing
Accessory Drive Belt
Coolant Pump Drive Belt
