Flex Plate: Specifications

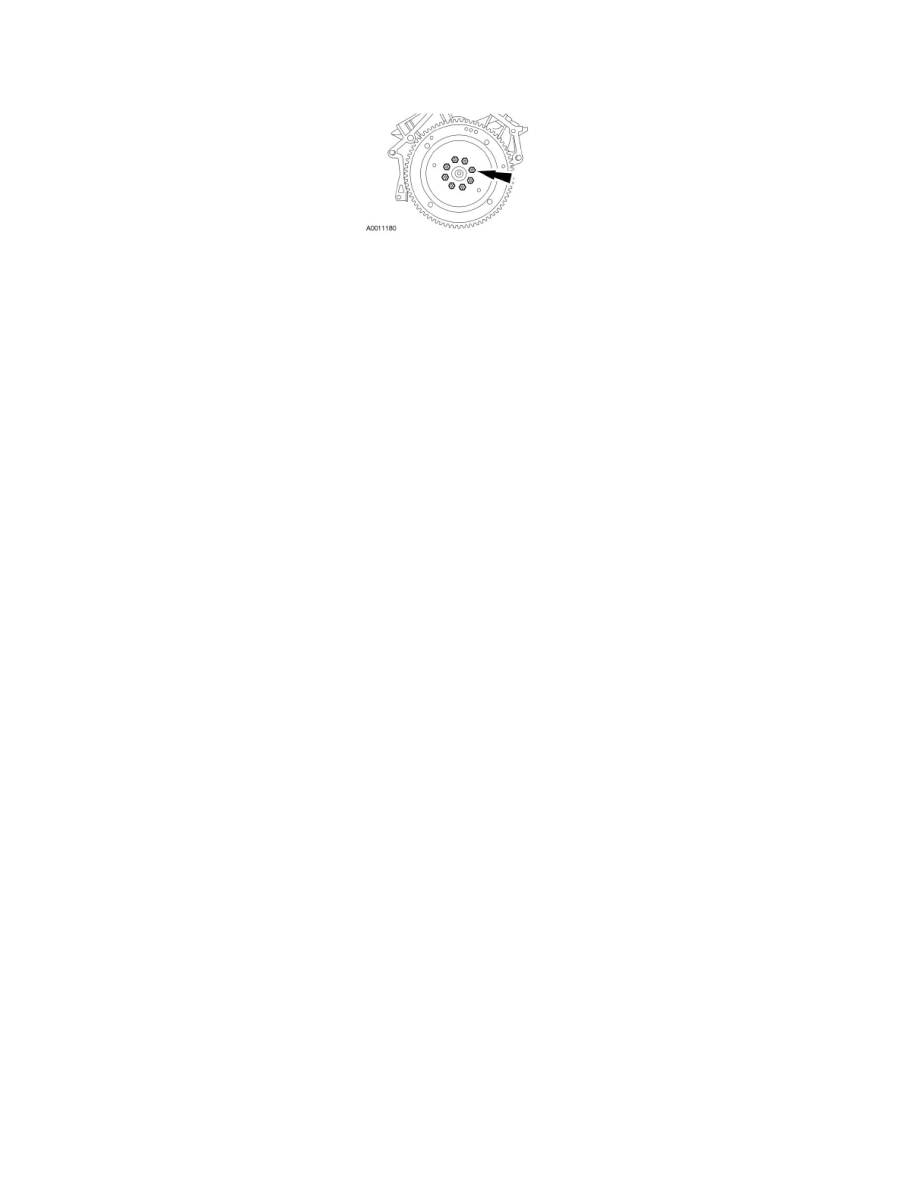

Position the flexplate and install the 8 bolts.
Tighten to.......................................................................................................................................................................................................80 Nm (59 lb-ft).
