Drive Belt: Diagrams
- Make
- Ford
- Model
- Escape 4WD
- Engine
- L4-2.5L Hybrid
- Year
- 2009
- Section
- Drive Belt › Diagrams
MaintenanceDiagrams
Drive Belt: Diagrams
Accessory Drive

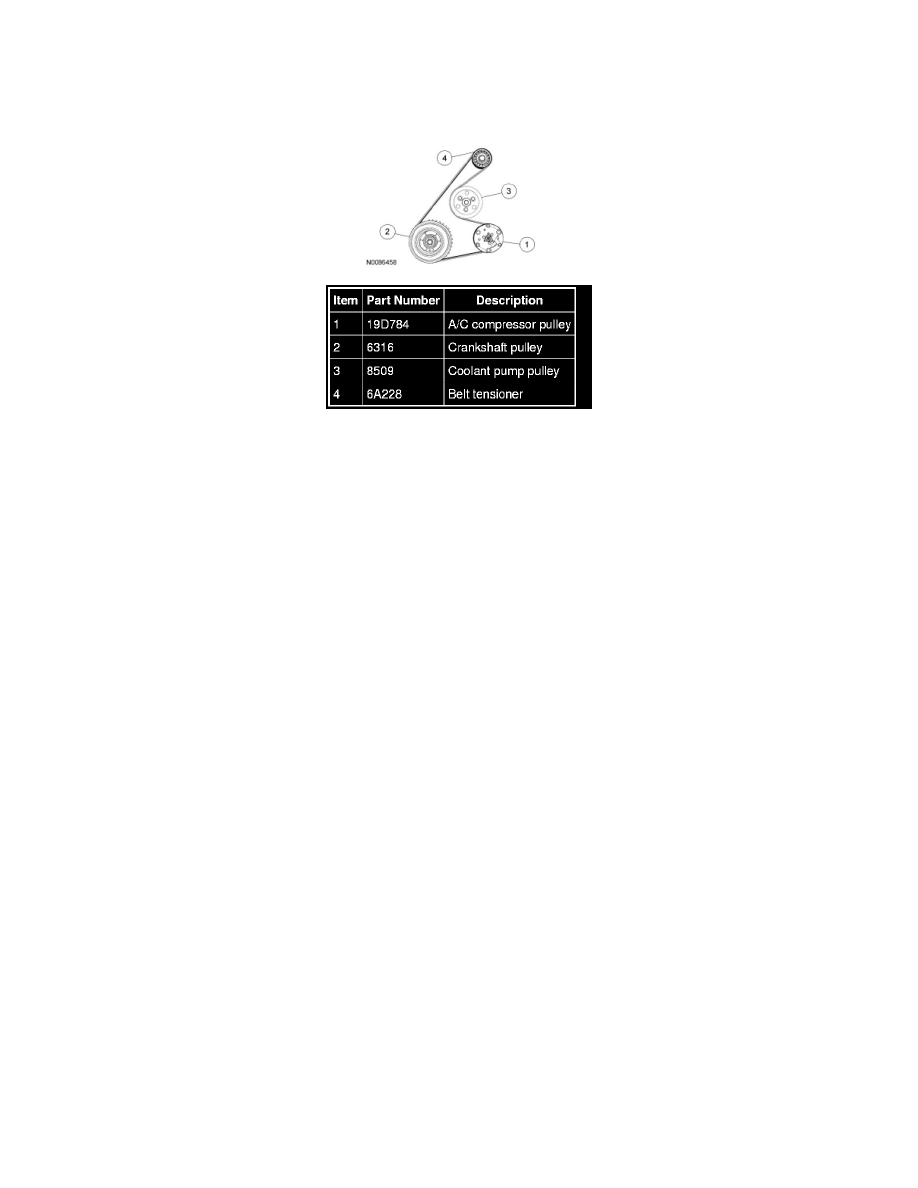

Accessory Drive Belt Routing
