Escape 4WD L4-2.5L Hybrid (2009)
Flywheel: Specifications

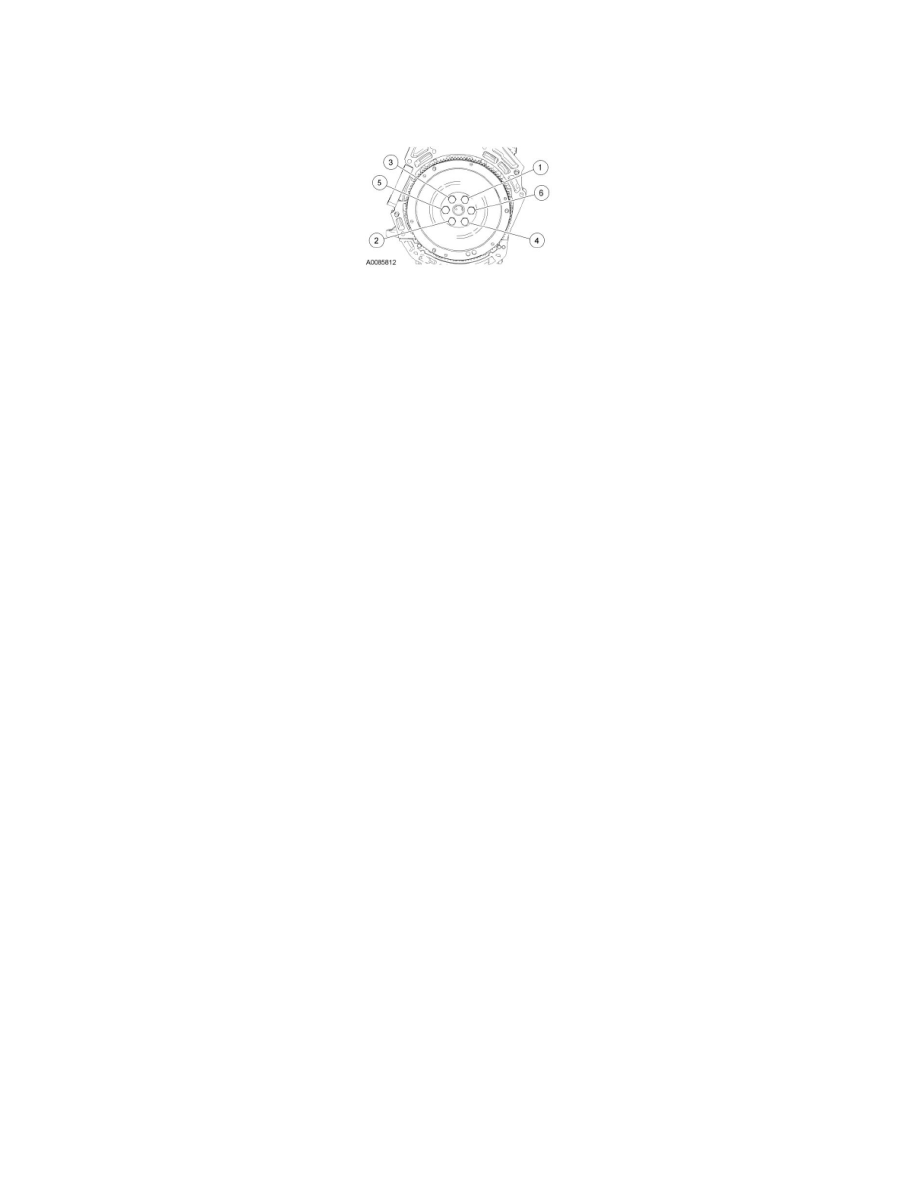

Install the flywheel and the bolts. Tighten the bolts in the sequence shown in the following 3 stages:
Stage 1: Tighten to.........................................................................................................................................................................................50 Nm (37 lb-ft).
Stage 2: Tighten to.........................................................................................................................................................................................80 Nm (59 lb-ft).
Stage 3: Tighten to.......................................................................................................................................................................................112 Nm (83 lb-ft).
