Escape 4WD V6-182 3.0L VIN 1 SFI (2002)
Valve Cover: Service and Repair
LH
Valve Cover LH
Removal

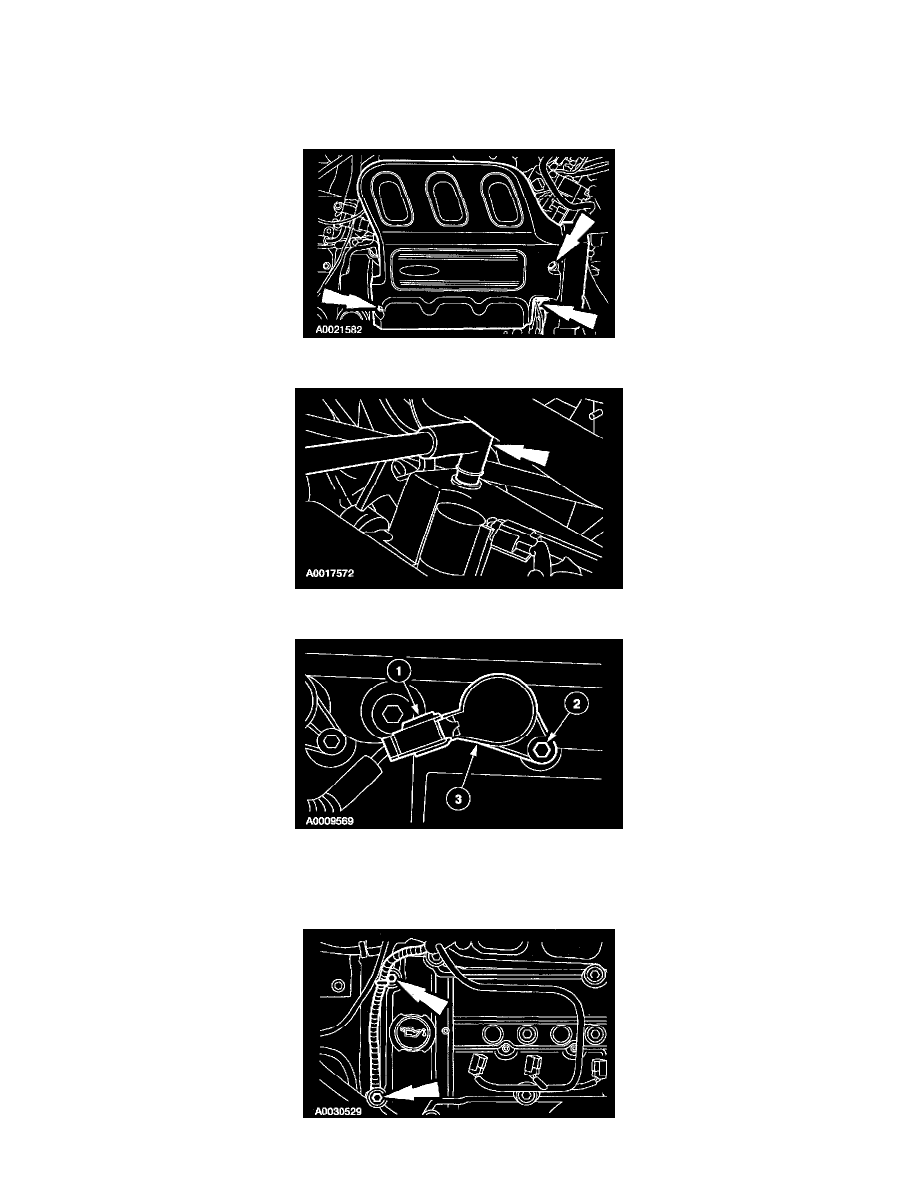

1. Remove the three nuts and the engine appearance cover.
2. Disconnect the crankcase ventilation tube from the valve cover.
3. Remove the three LH coil-on-plugs.
1
Disconnect the electrical connector.
2
Remove the bolt.
3
Remove the coil.
