Flexplate
- Make
- Ford
- Model
- Expedition Factory Service Manual
- Year
- 2007
- Section
- 303-01 Engine › In-vehicle repair › Flexplate
EngineFlexplate
Flexplate
Removal and Installation
- Remove the transmission. For additional information, refer to Section 307-01A or Section 307-01B.

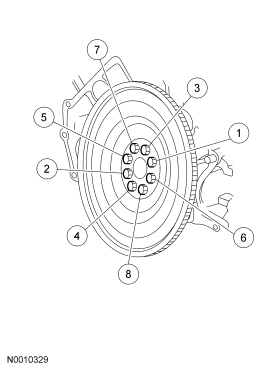

- Remove the 8 bolts and the flexplate.
- To install, tighten to 80 Nm (59 lb-ft) in the sequence shown.
- To install, reverse the removal procedure.
