Drive Belt: Diagrams

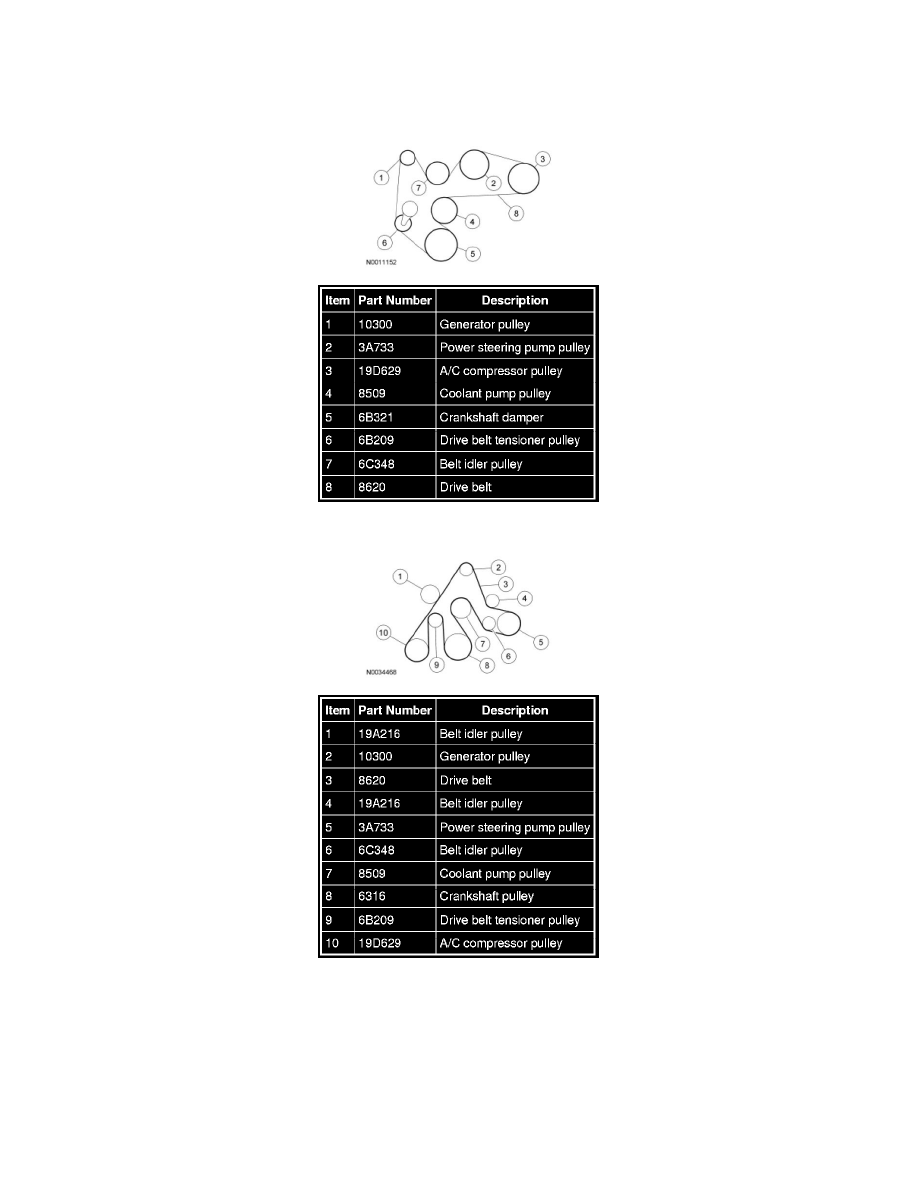

Accessory Drive Belt Routing

Front End Accessory Drive (FEAD) - 4.0L SOHC

Front End Accessory Drive (FEAD) - 4.6L (3V)
