Focus L4-2.0L DOHC VIN 5 (2003)
Brake Pedal Assy: Service and Repair
Brake Pedal and Bracket - Manual Transmission
Removal
All vehicles

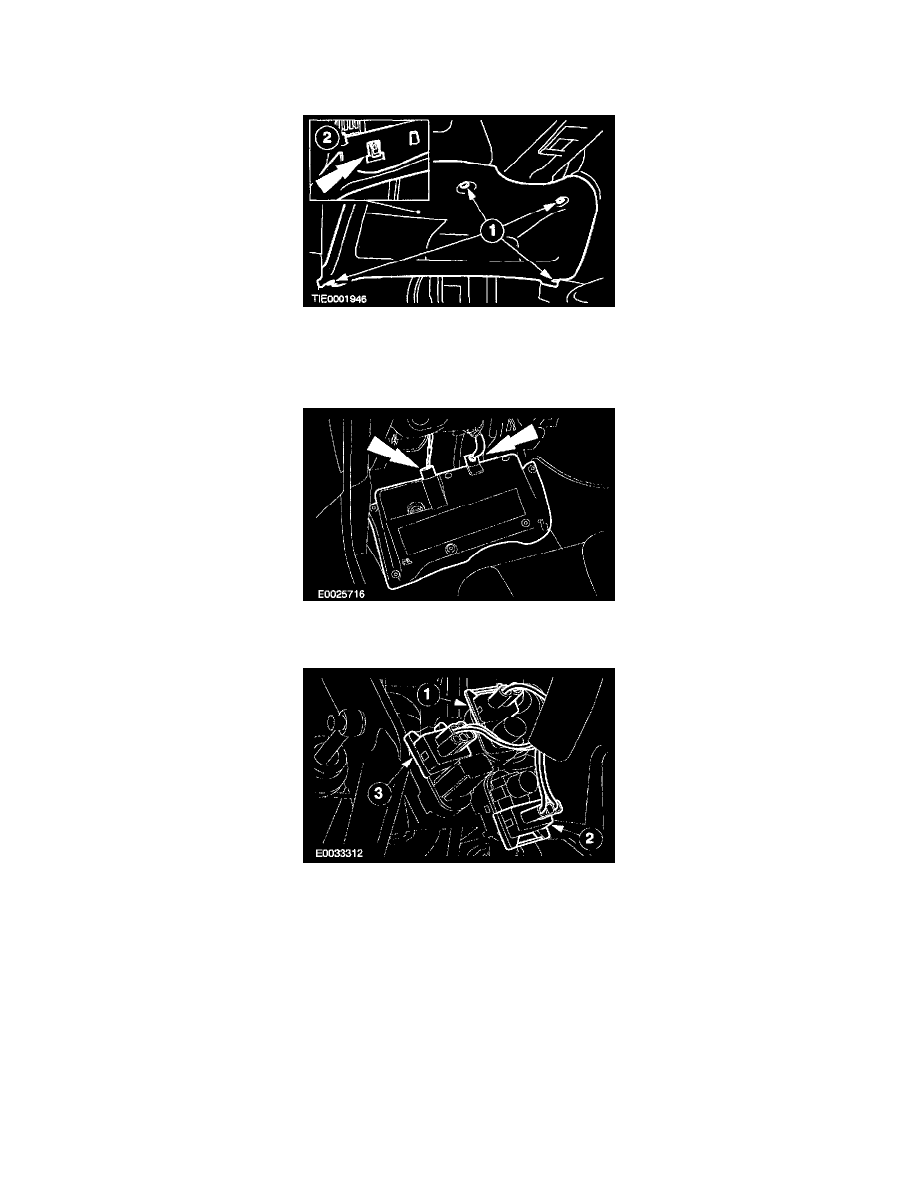

1. Detach the instrument panel lower panel.
1
Remove the screws.
2
Release the fastener.
2. Remove the instrument panel lower panel. Disconnect the Data Link Connector (DLC). Disconnect the footwell lamp electrical connector (if
equipped).
3. Disconnect the electrical connectors from the pedal position switches.
1
Speed control deactivation switch (if equipped).
2
Stop lamp switch.
3
Clutch position switch.
