Flywheel: Specifications
- Make
- Ford
- Model
- Focus
- Engine
- L4-2.3L VIN Z
- Year
- 2003
- Section
- Flywheel › Specifications
Flywheel: Specifications

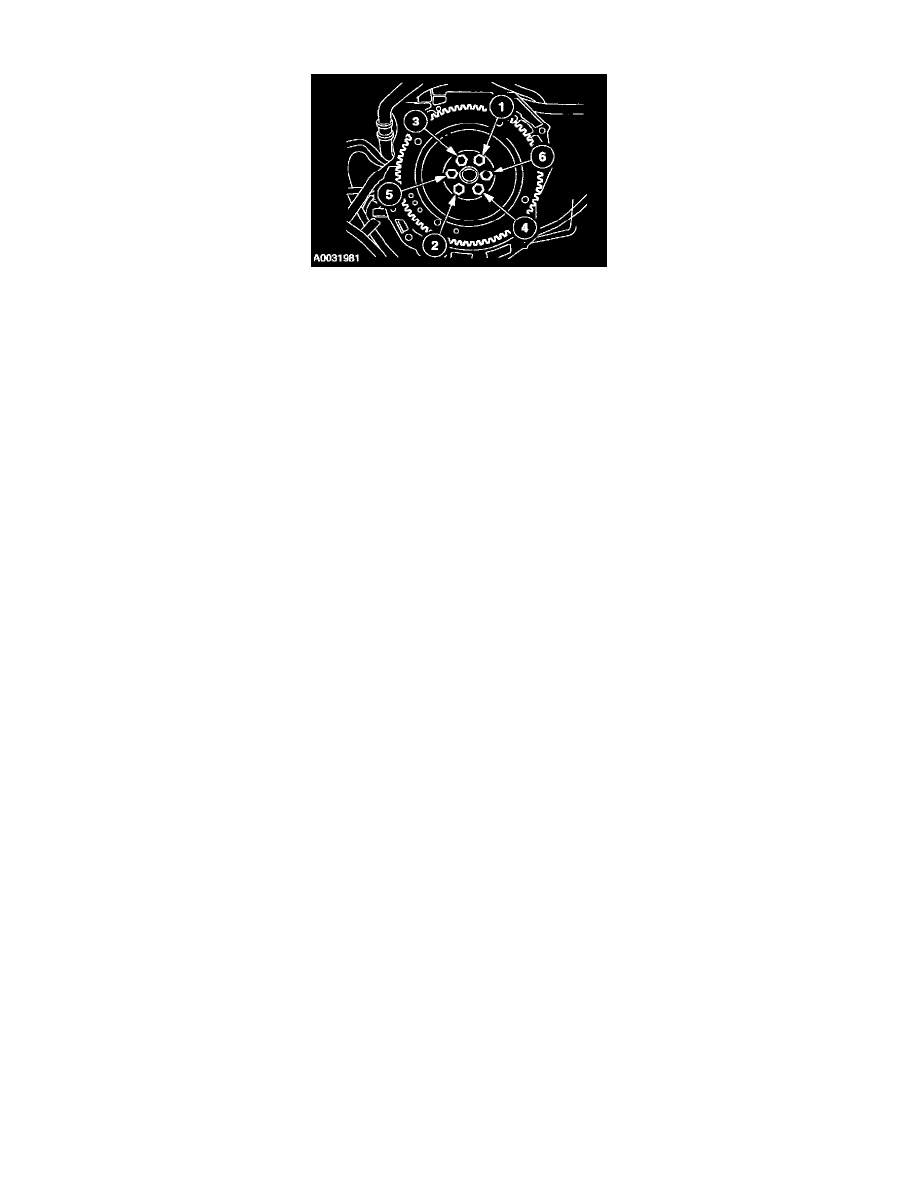

Flywheel/Flexplate bolts
Stage 1 .................................................................................................................................................................................................. 50 Nm (37 ft. lbs.)
Stage 2 .................................................................................................................................................................................................. 80 Nm (50 ft. lbs.)
Stage 3 ................................................................................................................................................................................................ 112 Nm (83 ft. lbs.)
