Flywheel: Specifications
- Make
- Ford
- Model
- Fusion
- Engine
- L4-2.3L VIN Z
- Year
- 2006
- Section
- Flywheel › Specifications
Flywheel: Specifications

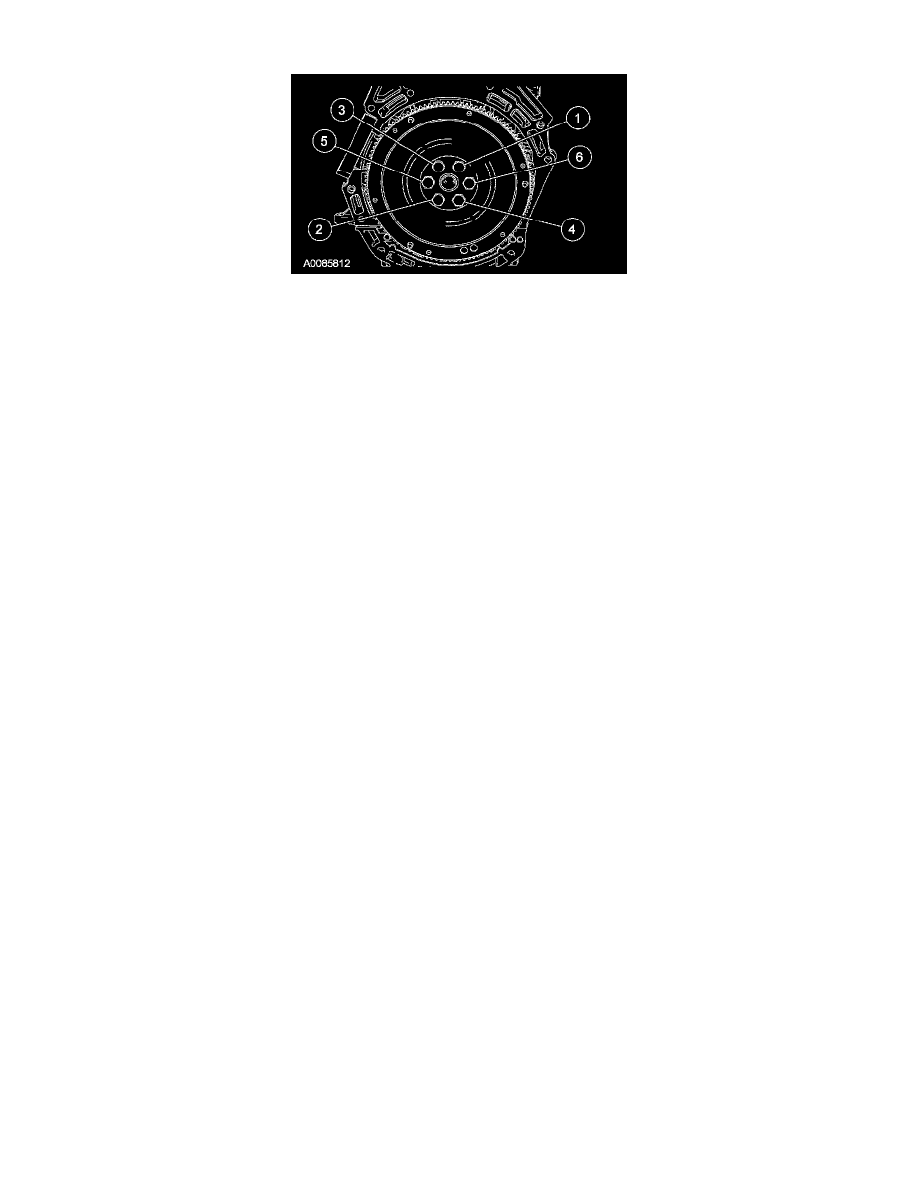

Flywheel Bolts
Special bolts are used for installation. Do not use standard bolts.
First pass ............................................................................................................................................................................................. 50 Nm (37 ft. lbs.).
Second pass ........................................................................................................................................................................................ 80 Nm (50 ft. lbs.).
Final pass ........................................................................................................................................................................................... 112 Nm (83 ft. lbs.).
