Fusion AWD V6-3.5L (2010)
Vehicle Lifting: Service and Repair
Jacking and Lifting
WARNING: When jacking or lifting the vehicle, block all wheels remaining on the ground. Set the parking brake if the rear wheels will remain
on the ground. These actions help prevent unintended vehicle movement. Failure to follow these instructions may result in serious personal
injury.
WARNING: Never get underneath a vehicle that is supported only by a jack. The jack could unintentionally lower. Always support vehicle
with floor stands. Failure to follow these instructions may result in serious personal injury.
WARNING: Only raise the vehicle when positioned on a hard, level surface. Attempting to raise the vehicle on an uneven or soft surface may
result in vehicle slipping or falling from the jack or jackstand. Failure to follow this instruction may result in serious personal injury.
WARNING: Position the hoist lift arms as shown in the illustration. Incorrect positioning could result in vehicle slipping or falling from the
hoist. Failure to follow this instruction may result in serious personal injury.
NOTICE: The jack provided with the vehicle is intended to be used in an emergency for changing a deflated tire. To avoid damage to the
vehicle, never use the jack to hoist the vehicle for any other purpose.
NOTICE: To prevent possible damage to the underbody, do not drive the vehicle onto the drive-on lift without first checking for possible
interference, or damage may occur.
NOTICE: Damage to the suspension, exhaust or steering linkage components may occur if care is not exercised when positioning the hoist
adapters prior to lifting the vehicle.
NOTICE: To prevent possible damage to the Sport package trim when lifting with a hoist, position the hoist pad on the pinch weld as
indicated.

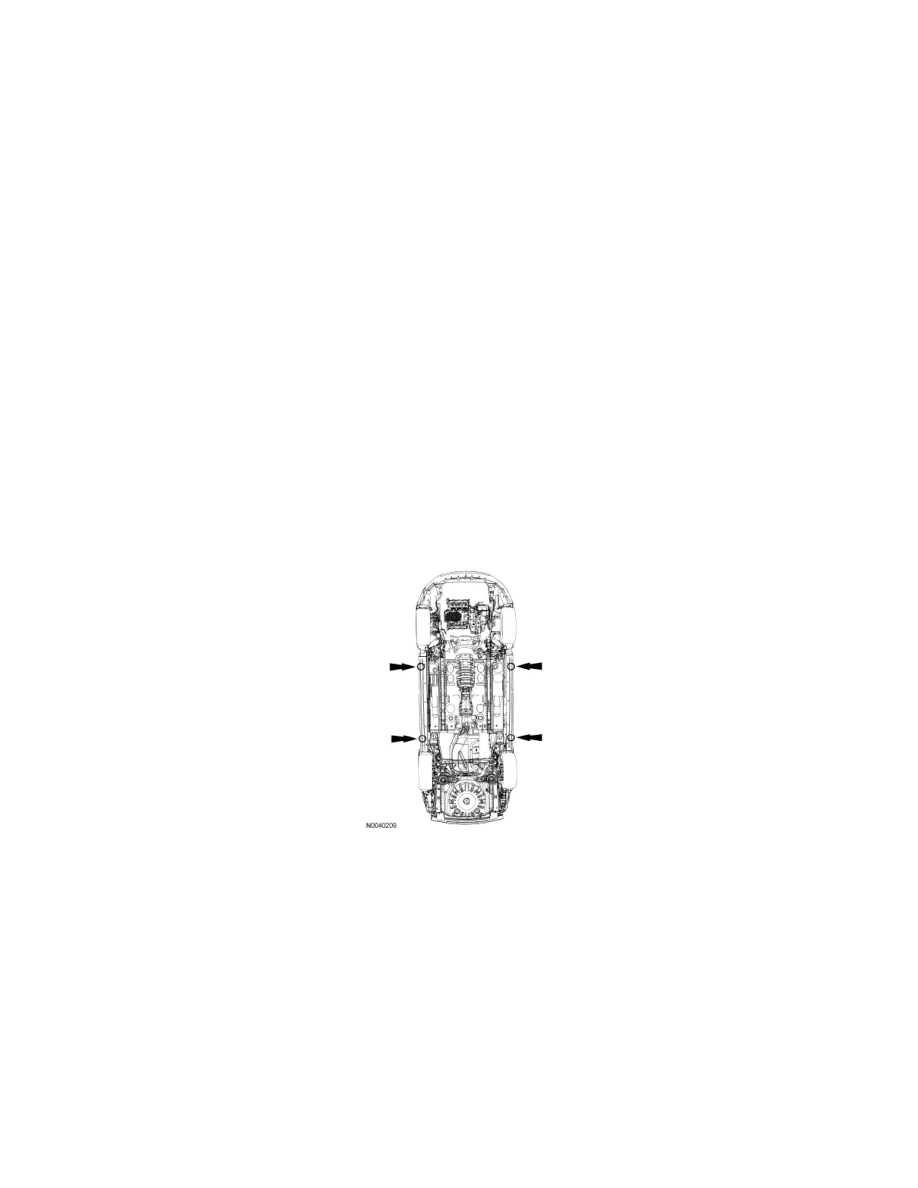

Jacking and Lifting Points
Lifting Points - Front
