Fusion FWD L4-2.3L VIN Z (2007)

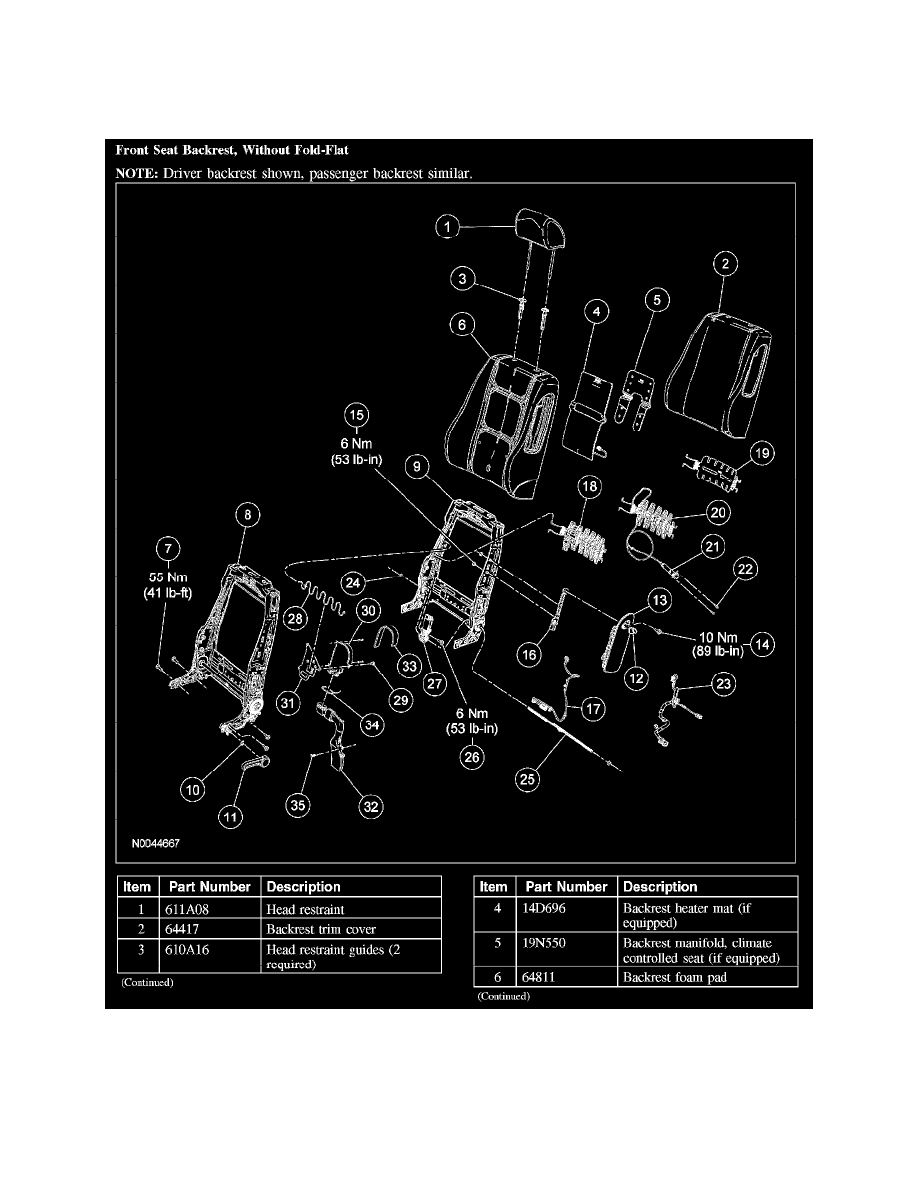

10. NOTE: Inspect the climate controlled seat backrest manifold for crush and obstruction before installation. If damaged, install a new backrest
manifold.
If removed, align the backrest manifold and insert into the valleys of the foam pad.
-
Check for correct fit between the manifold, foam pad and TED assembly, to make sure there is no air flow obstruction or cushion crush.
11. Install new hog rings to the upper support spring and foam pad.
All seats
12. NOTE: A backrest trim cover for a seat with a side air bag module is different than a backrest trim cover for a seat without a side air bag module.
Make sure the correct backrest trim cover is being installed.
Position the backrest trim cover to the backrest frame and foam pad and install new rear upper hog rings to the backrest frame.
13. Roll the backrest trim cover downward and attach the hook and loop strips.
-
If removed, install new hog rings as noted during disassembly.
14. NOTE: The head restraint guides are keyed to the backrest frame and are not interchangeable.
Install the 2 head restraint guides to the backrest.
15. Connect the inner and outer backrest trim cover J-strips.
16. Install the 2 pin-type retainers and trim cover flaps to the recliners, if equipped.
Seat with side air bag
17. WARNING:
