Fusion FWD L4-2.3L VIN Z (2007)
Part 2

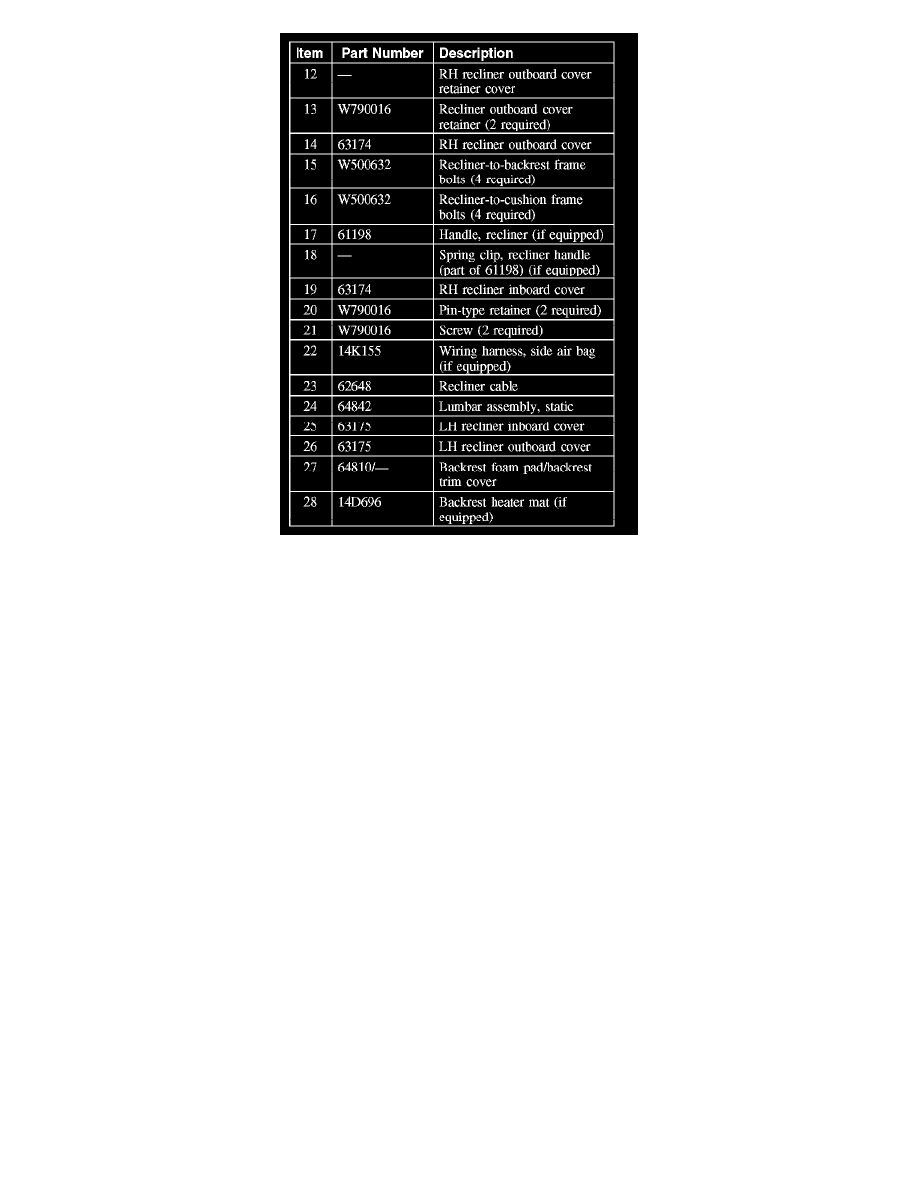

Disassembly
WARNING:
-
Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module.
This will reduce the risk of injury in the event of an accidental deployment.
-
Carry a live side air bag module with the air bag and tear seam pointed away from your body. This will reduce the risk of injury in the
event of an accidental deployment.
-
Do not set a live side air bag module down on the cover tear seam. This will reduce the risk of injury in the event of an accidental
deployment.
-
After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is
irritating to the skin. Wash your hands with soap and water afterwards.
-
Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
-
Side air bag modules with damaged covers must be replaced.
-
To reduce the risk of personal injury, do not use any memory saver devices.
-
Front seat back trim covers installed on seats equipped with side air bags cannot be repaired, they are to be replaced. Cleaning is
permissible.
NOTE:
-
If a side air bag deployment took place, a new side air bag module and bolt must be installed. A new side air bag module bracket on the backrest
frame should be inspected and installed if necessary.
-
If a seat equipped with a SRS component is being serviced, the SRS must be depowered.
-
The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal
operation and does not indicate a SRS fault.
-
The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
All seats
1. Remove the front seat and depower the supplemental restraint system (SRS).
2. Remove the front seat backrest.
Seat with side air bag
3. Detach the side air bag bolt cover.
4. Remove the bolt, lift up and out to separate the side air bag module from the seat backrest.
5. Slide and disengage the side air bag module electrical connector locking clip, release the tab and disconnect the side air bag module electrical
