Drive Belt: Exploded Views

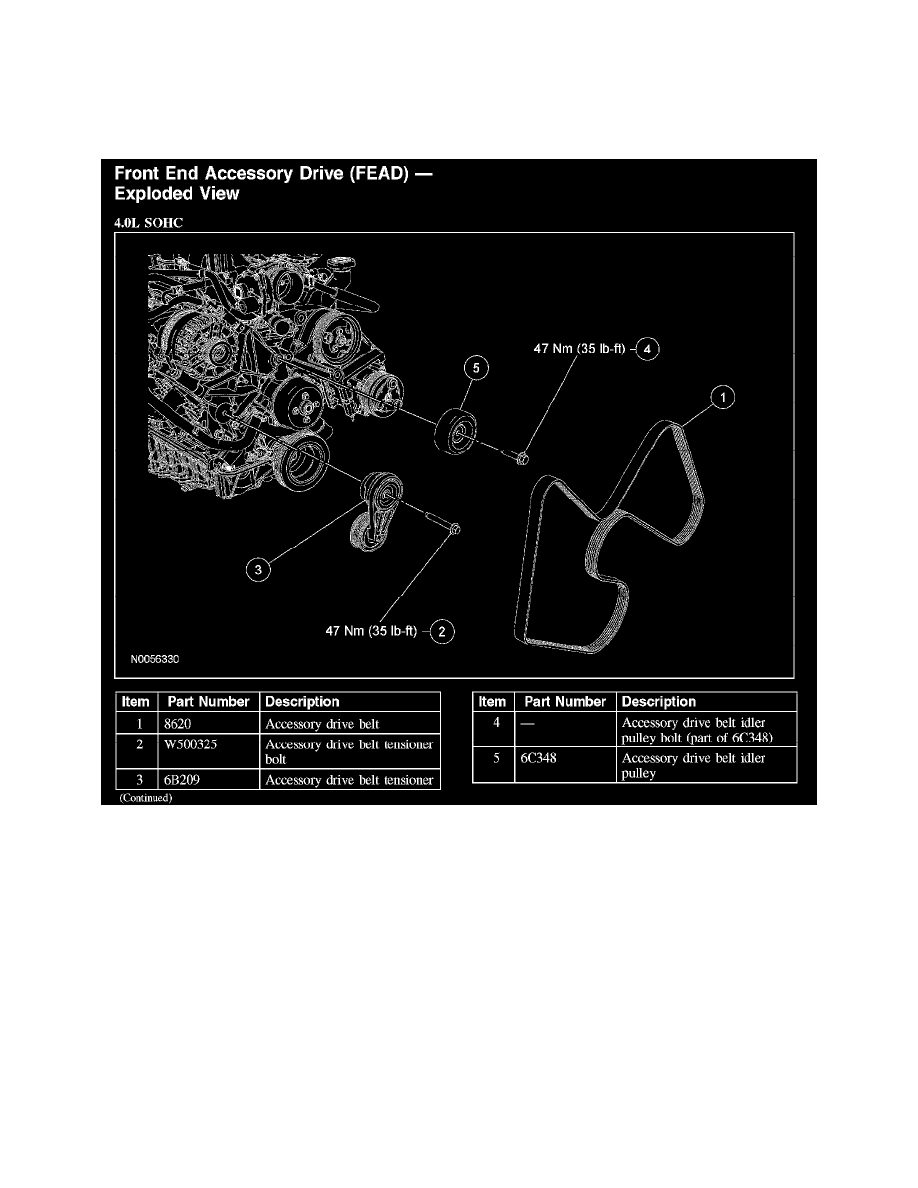

Front End Accessory Drive (FEAD) - Exploded View

4.0L SOHC



Front End Accessory Drive (FEAD) - Exploded View 4.0L SOHC

4.6L (3V)
