Flex Plate: Specifications
- Make
- Ford
- Model
- Mustang
- Engine
- V6-4.0L
- Year
- 2008
- Section
- Flex Plate › Specifications
Flex Plate: Specifications

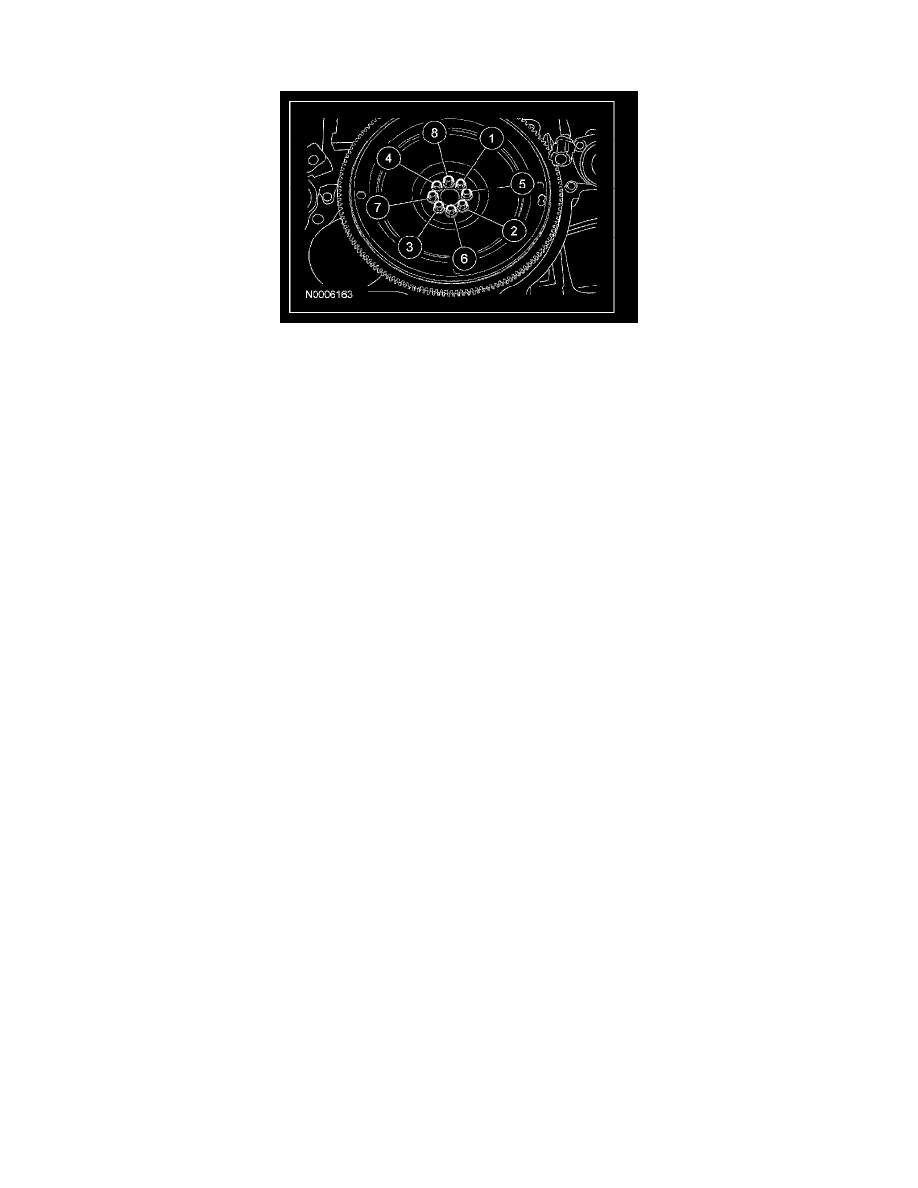

Flywheel Bolts
NOTE: Special bolts are used for flexplate installation. Do not use standard bolts.
First pass ................................................................................................................................................................................................. 13 Nm (10 lb-ft).
Second pass ............................................................................................................................................................................................. 50 Nm (37 lb-ft).
Final pass ................................................................................................................................................................................... Tighten an additional 90°
