Flywheel: Specifications

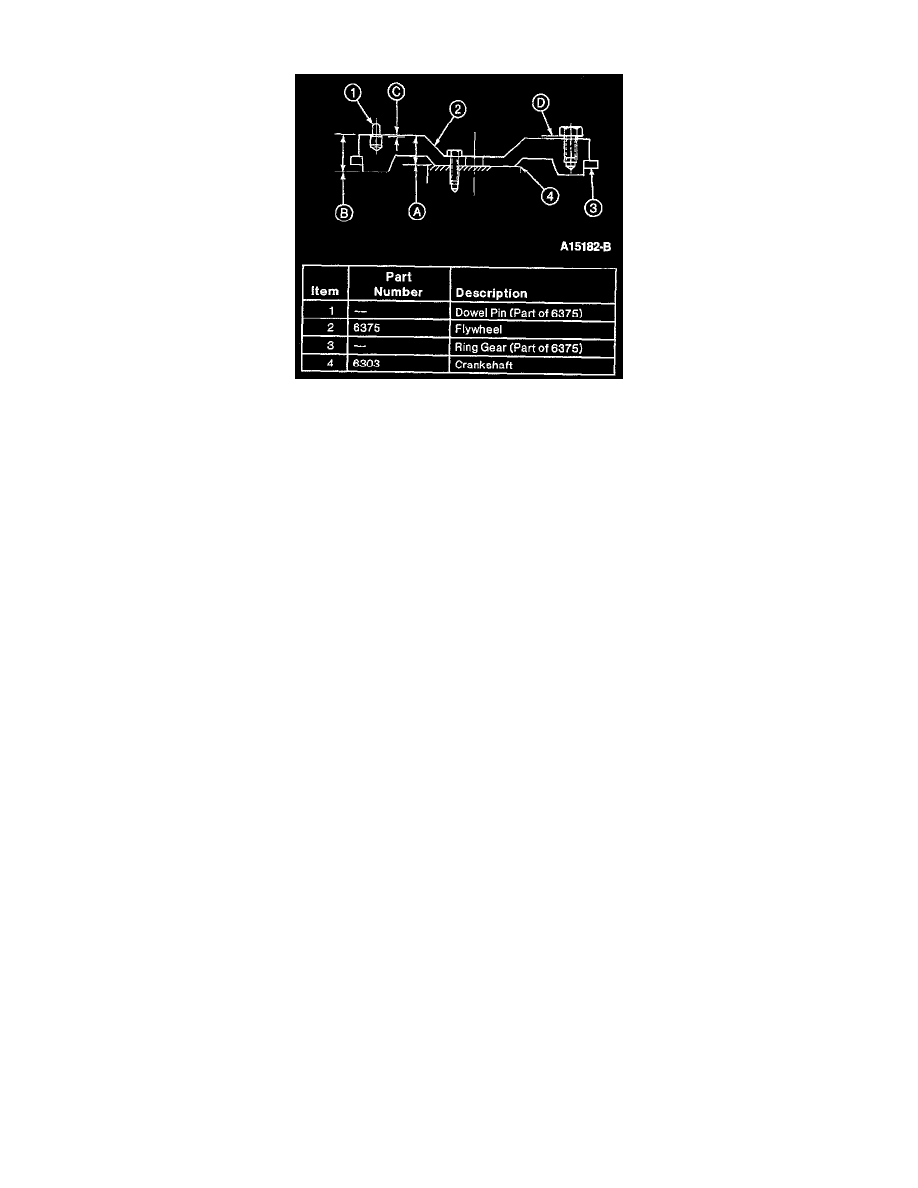

Dimensions

A. 22.95 mm (0.90 inch)
B. 23.75 mm (0.94 inch)
C. Dowel pin shoulder must be below surface.
D. 1.50 mm (0.060 inch) Maximum [1]

[1] With bolt finger tight.

Clutch Surface

Runout (TIR): 0.130 mm (0.005 inch)
Finish: 4.0-1.3 micrometer (160-52 micro-inch)

Tightening Specifications

Retaining Bolts: 73-87 Nm (54-64 ft. lbs.)
Tighten in an alternating sequence.
