Mustang V8-4.6L SC VIN Y (2004)
Loosely install the bolts.
3. NOTE: The main control valve body bolts will be tightened in later steps.
Loosely install the bolts.
4. Install the manual control valve detent lever spring.
1
Position the manual control valve detent lever spring.
2
Install the bolt.

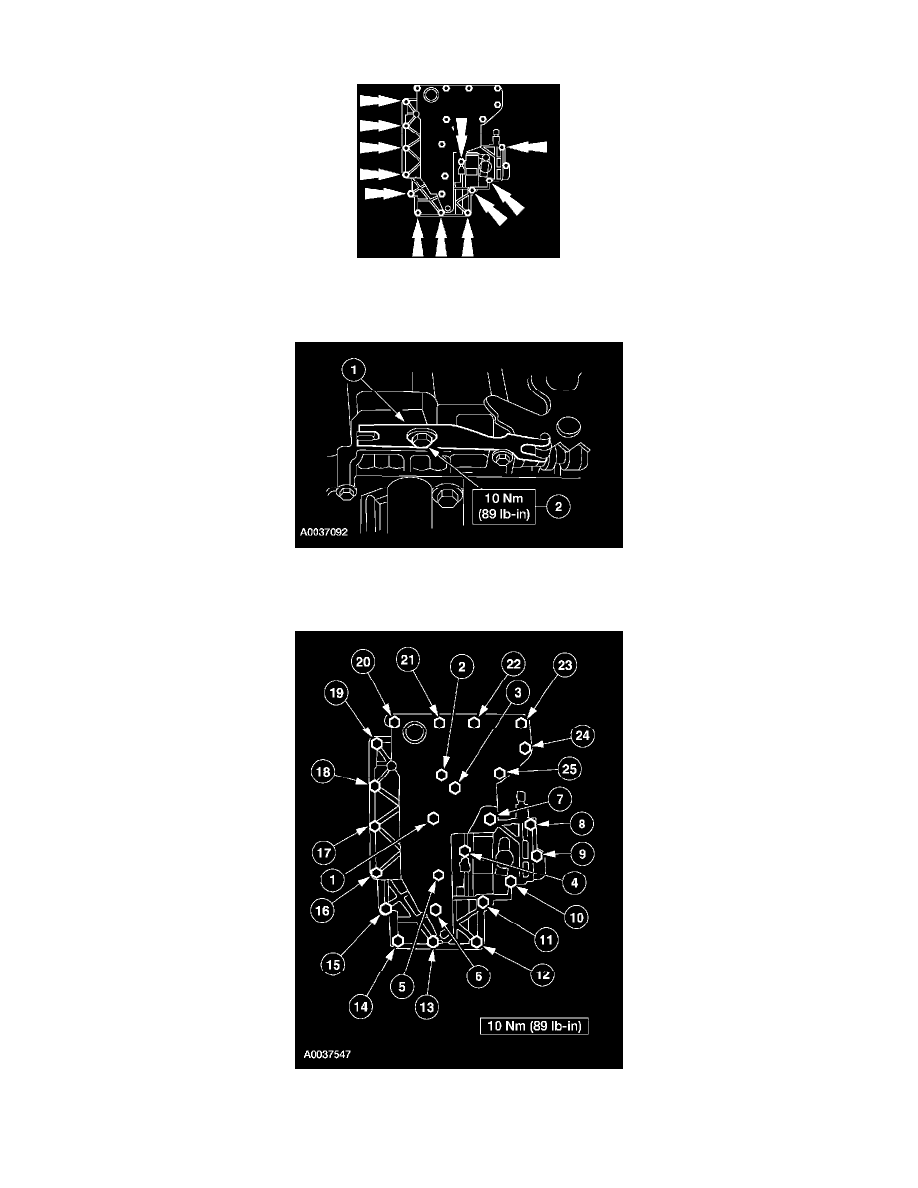

5. Tighten the main control valve body bolts in the sequence shown.
