Flywheel: Specifications

Flywheel

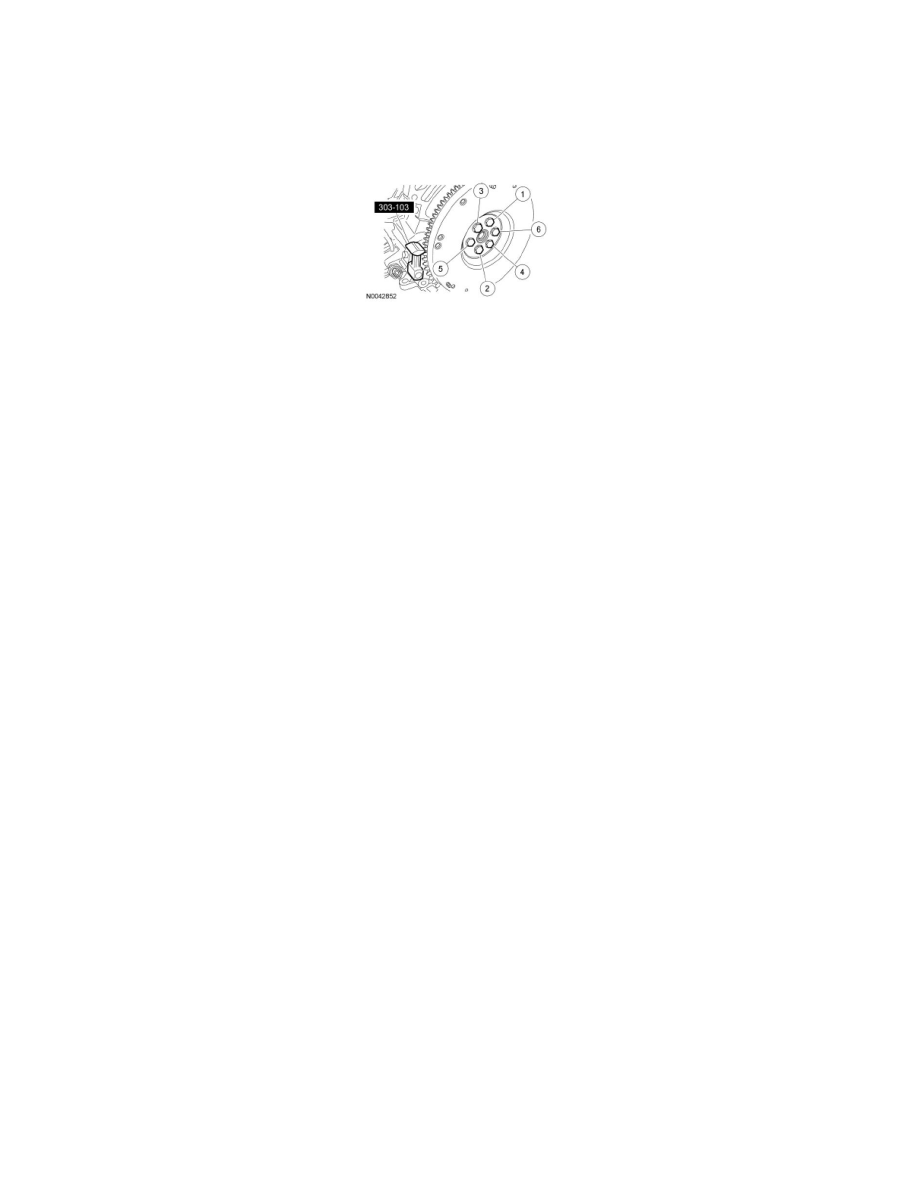

Using the Flywheel Locking Tool, install the 6 bolts in the sequence shown, in 3 stages.
Stage 1: Tighten to.........................................................................................................................................................................................50 Nm (37 lb-ft).
Stage 2: Tighten to.........................................................................................................................................................................................80 Nm (59 lb-ft).
Stage 3: Tighten to.......................................................................................................................................................................................112 Nm (83 lb-ft).
