Ranger 4WD V6-4.0L (2009)
Flex Plate: Specifications
Flex Plate

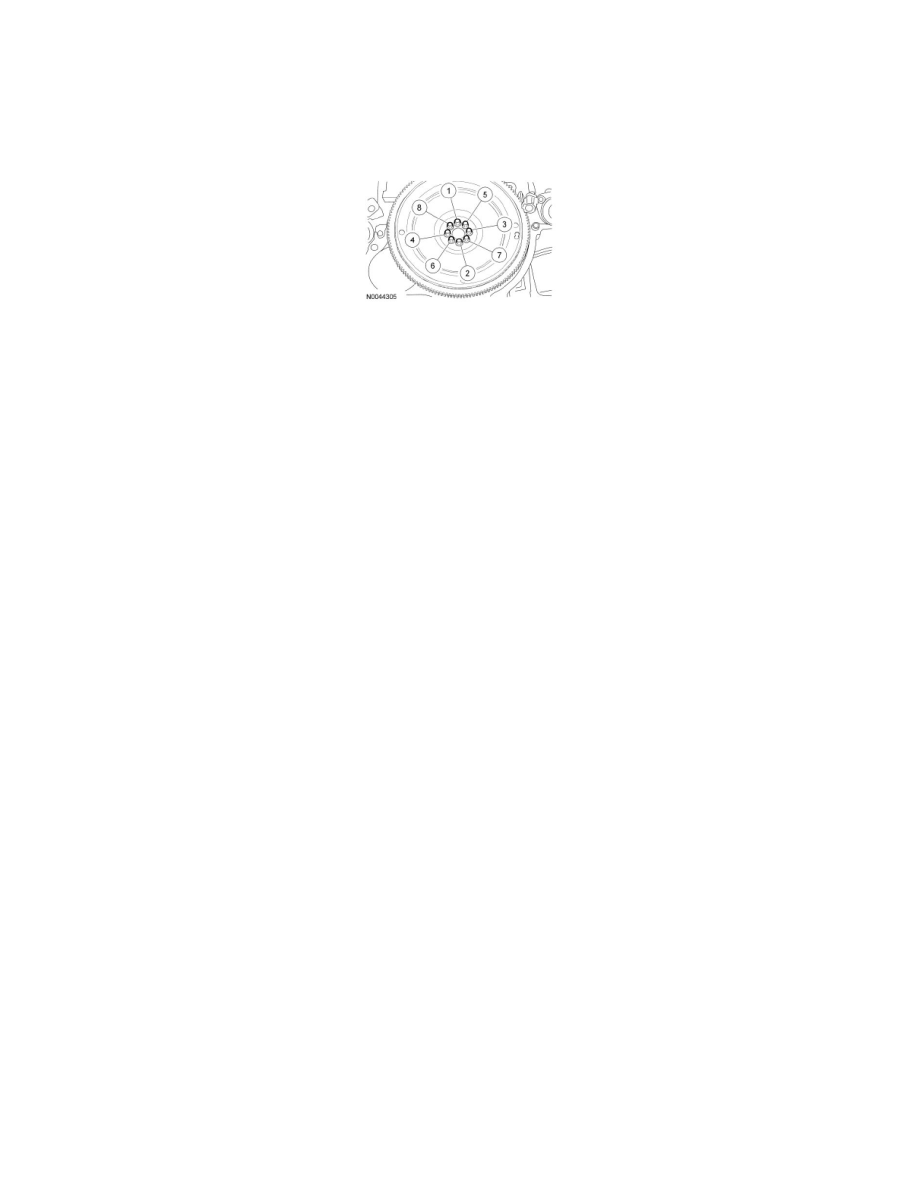

Install the flexplate. Tighten the 8 new bolts in 3 stages in the sequence shown.
Stage 1: Tighten to......................................................................................................................................................................................13 Nm (115 lb-in).
Stage 2: Tighten to.........................................................................................................................................................................................50 Nm (37 lb-ft).
Stage 3: Tighten an additional.................................................................................................................................................................................90 degrees.
