Tempo FWD L4-140 2.3L HSO (VIN S) (1989)
/Page-1523015.png)

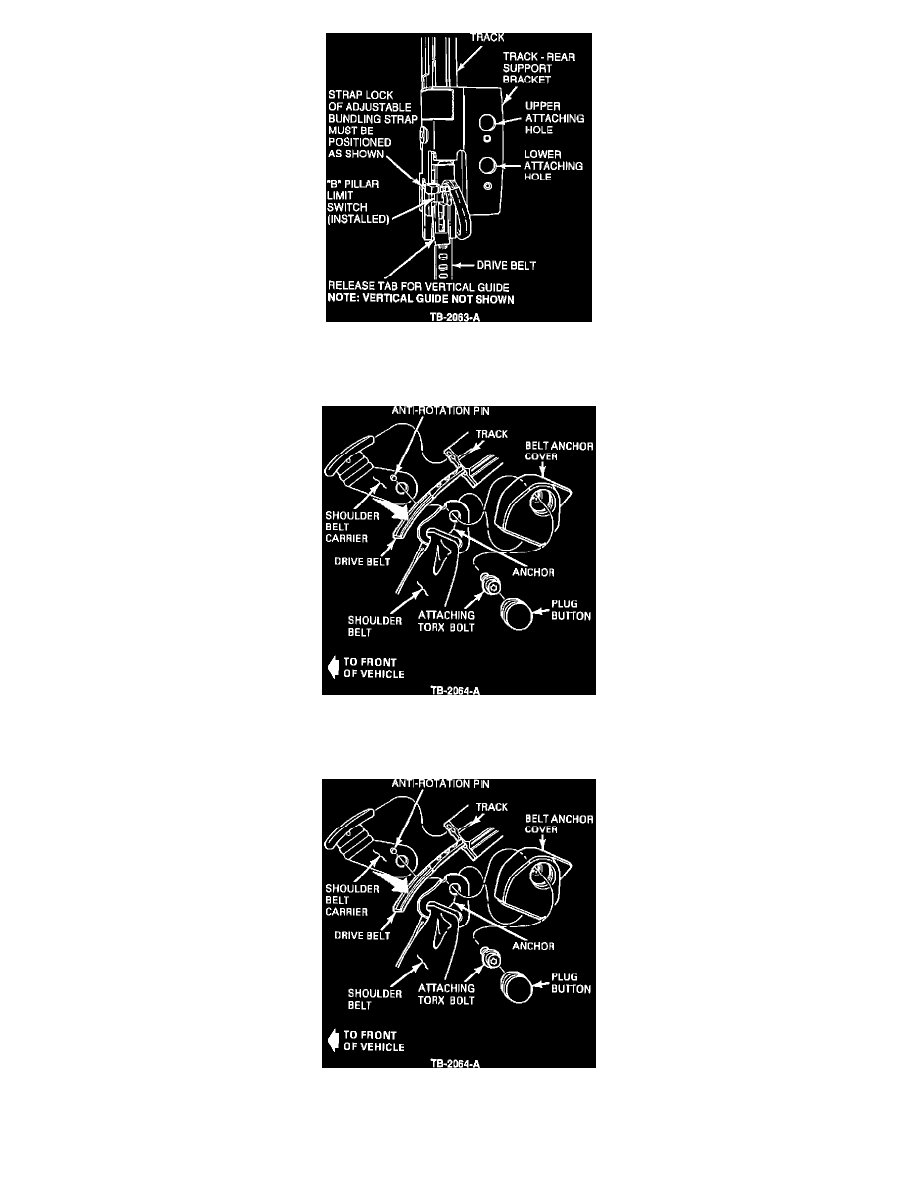

Figure 16
4.
Carefully disconnect the "B" pillar limit switch from the shoulder strap track assembly, Figure 16.
Figure 17
5.
Remove the shoulder strap anchor plug button and the attaching Torx bolt, Figure 17. Save parts for installation later.
Figure 17
