Tempo FWD L4-140 2.3L HSO (VIN S) (1989)
/Page-1523016.png)

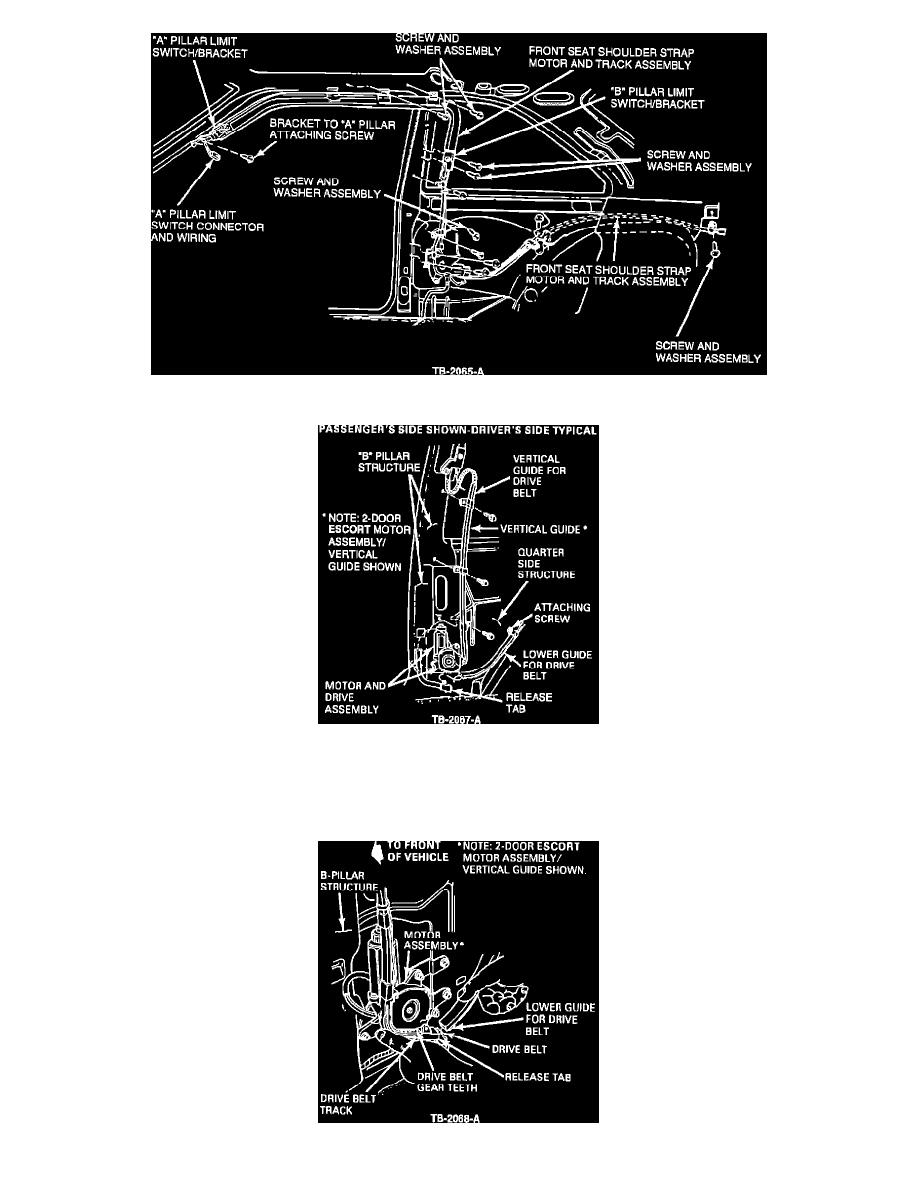

Figure 18
Figure 20
6.
Remove the quarter panel sound deadener to gain access to the passive restraint motor/drive assembly, Figures 17, 18 and 20.
7.
Remove the screws holding the vertical guide to body.
