Canyon 4WD V8-5.3L (2009)
Fluid Line/Hose: Service and Repair
Transmission Fluid Cooler Hose/Pipe Replacement
Transmission Fluid Cooler Hose/Pipe Replacement
Removal Procedure
1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle (See: Maintenance/Vehicle Lifting/Service and Repair).
2. Remove engine protection shield. Refer to Engine Protection Shield Replacement (See: Body and Frame/Frame/Skid Plate/Service and Repair)

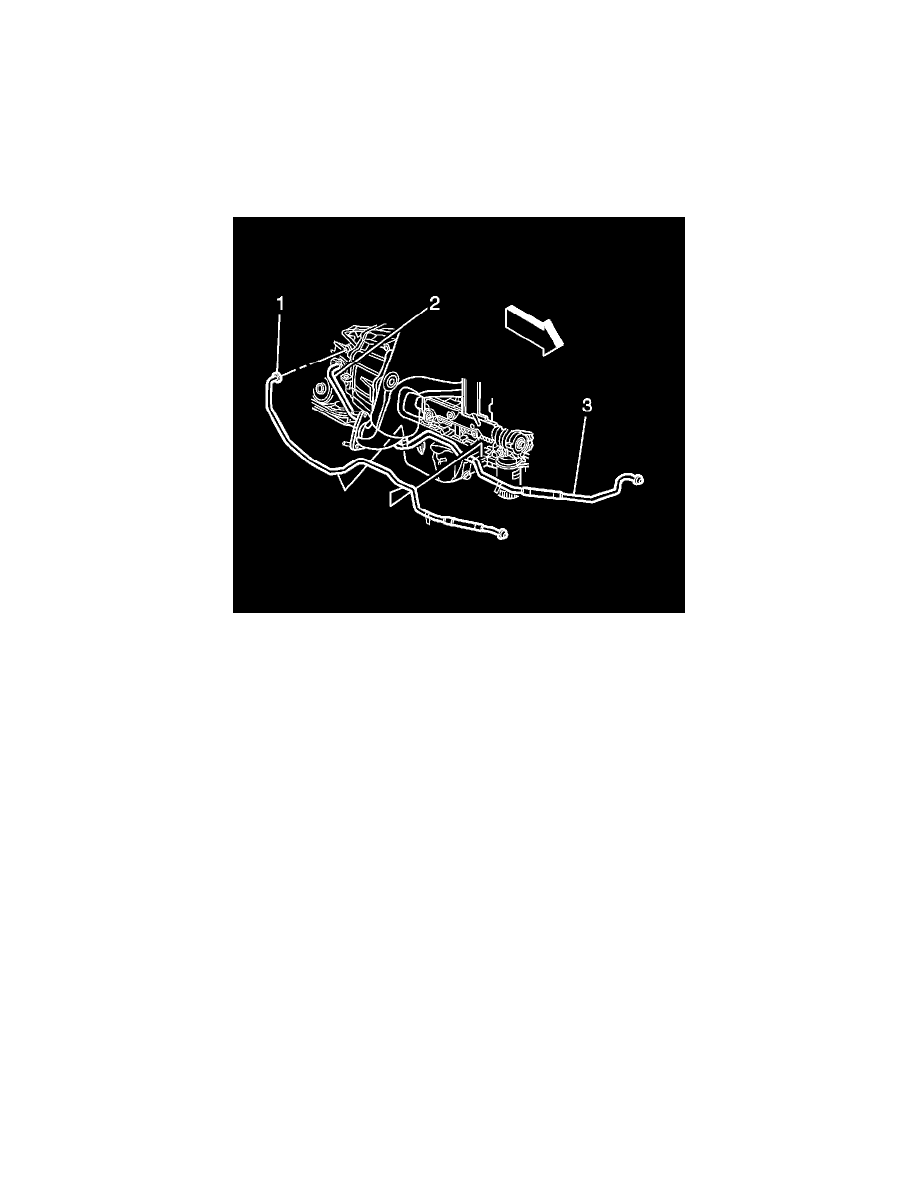

3. Disconnect the transmission fluid cooler lines (3) from the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting
Disconnection and Connection (See: ).
4. Remove the transmission fluid cooler lines from the retainer located on the radiator.
5. Remove the transmission fluid cooler lines from the retainer located on the right side of the engine.
6. Support the transmission with a transmission jack.
7. Remove the transmission support. Refer to Transmission Support Crossmember Replacement (2WD) (See: Body and
Frame/Frame/Cross-Member/Service and Repair/Transmission Support Crossmember Replacement)Transmission Support Crossmember
Replacement (4WD) (See: Body and Frame/Frame/Cross-Member/Service and Repair/Transmission Support Crossmember Replacement).
8. Remove the front exhaust pipe assembly. Refer to Catalytic Converter Replacement (LLV/LLR - w/2WD) ()Catalytic Converter Replacement
(LLV/LLR - w/4WD) ().
9. Carefully lower the transmission to gain access to the transmission fluid cooler line fittings.
10. Disconnect the transmission fluid cooler lines (2) from the transmission. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting
Disconnection and Connection (See: ).
11. Remove the transmission fluid cooler lines (1) from the vehicle.
Installation Procedure
