Canyon 4WD V8-5.3L (2009)
Caution: Refer to Fastener Caution (See: Service Precautions/Vehicle Damage Warnings/Fastener Caution).
3. Install the following items:
1. The actuator feed limit valve (374)
2. The actuator feed limit valve spring (375)
3. The bore plug (376)
4. The bore plug retainer (395)
5. The pressure control solenoid (377)
6. The solenoid retainer (378)
7. Tighten the pressure control solenoid retaining bolt to 11 Nm (97 lb in)

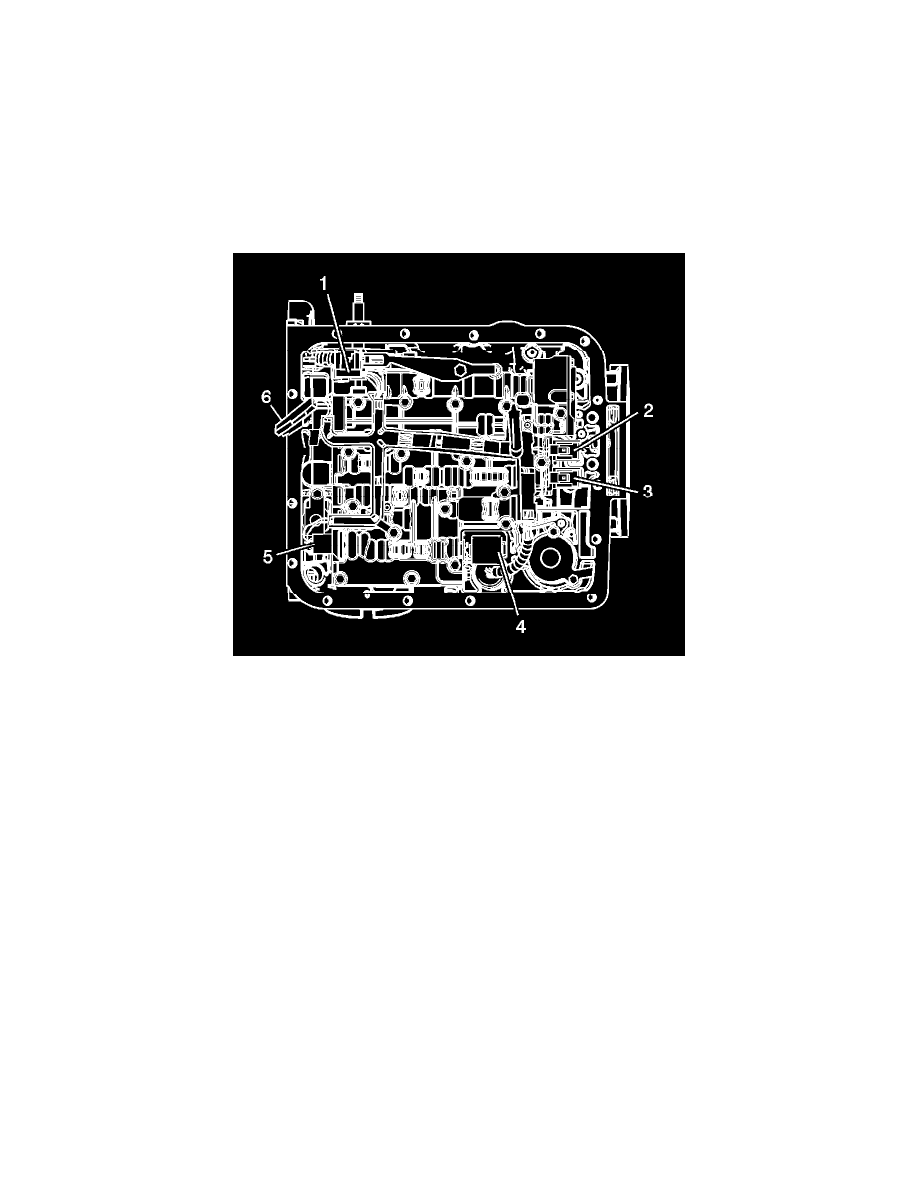

4. Connect all the internal wiring harness electrical connectors to the electrical components (1-6).
5. Install the 1-2 accumulator. Refer to Accumulator Assembly, Spacer Plate, and Gaskets (See: Accumulator/Service and Repair).
6. Install the transmission oil pan and filter. Refer to Automatic Transmission Fluid and Filter Replacement (See: Service and Repair/Removal and
Replacement).
7. Fill the transmission to the proper level with DEXRON(R) VI transmission fluid. Refer to Transmission Fluid Check (See: Testing and
Inspection/Component Tests and General Diagnostics/Transmission Fluid Check).
Note: It is recommended that transmission adaptive pressure (TAP) information be reset.
Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, the engine control module (ECM), powertrain
control module (PCM) or transmission control module (TCM) will need to relearn TAP values. Transmission performance may be affected as new
TAP values are learned.
8. Reset the TAP values. Refer to Transmission Adaptive Functions (See: Description and Operation/Transmission Adaptive Functions).
