Canyon 4WD V8-5.3L (2009)

Page 1
background image

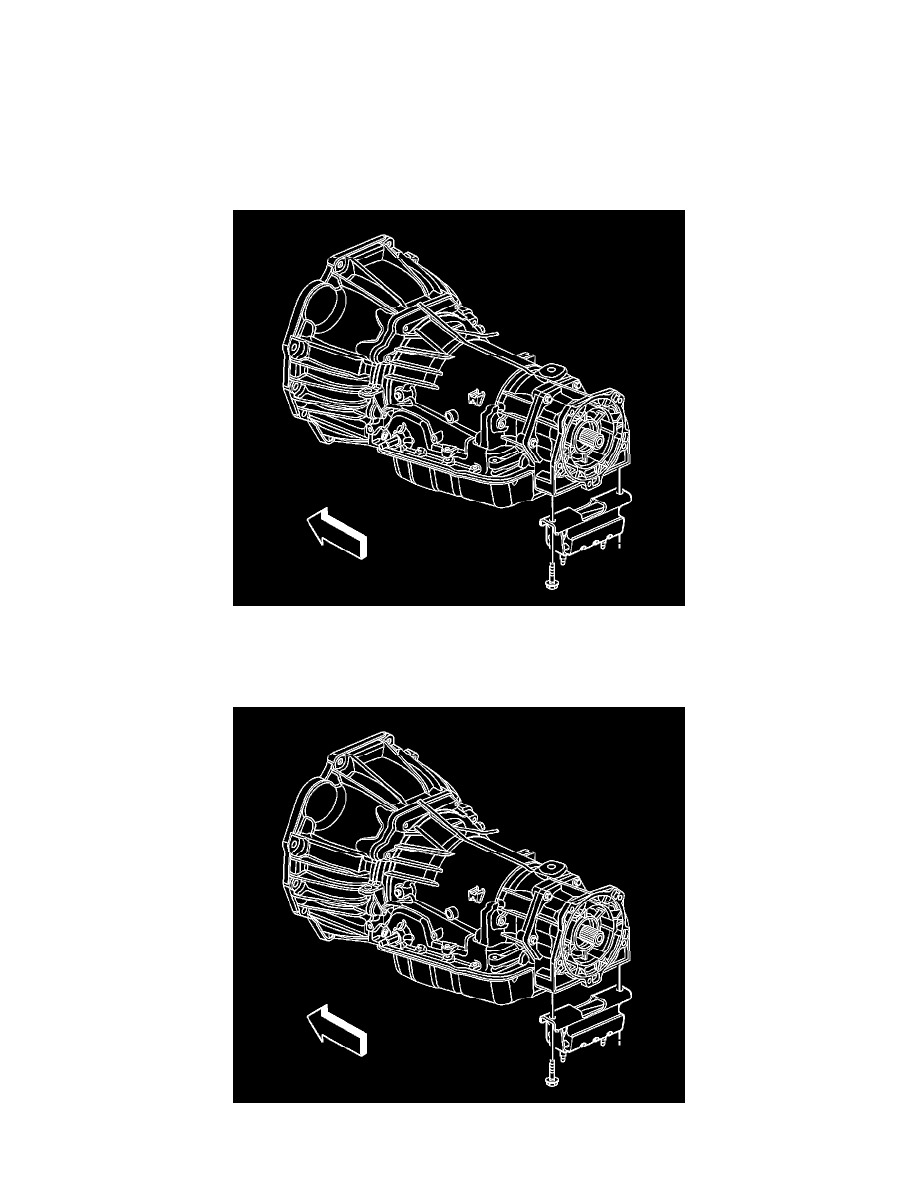

Transmission Mount: Service and Repair

Transmission Mount Replacement (4WD)

Removal Procedure

1. Remove the transmission support. Refer to Transmission Support Crossmember Replacement (2WD)   (See: Body and

Frame/Frame/Cross-Member/Service and Repair/Transmission Support Crossmember Replacement)Transmission Support Crossmember
Replacement (4WD)   (See: Body and Frame/Frame/Cross-Member/Service and Repair/Transmission Support Crossmember Replacement).

2. Remove the transmission mount bolts.
3. Remove the transmission mount from the vehicle.

Installation Procedure

1. Install the transmission mount to the vehicle.
