Envoy 2WD L6-4.2L (2008)
Grille: Service and Repair

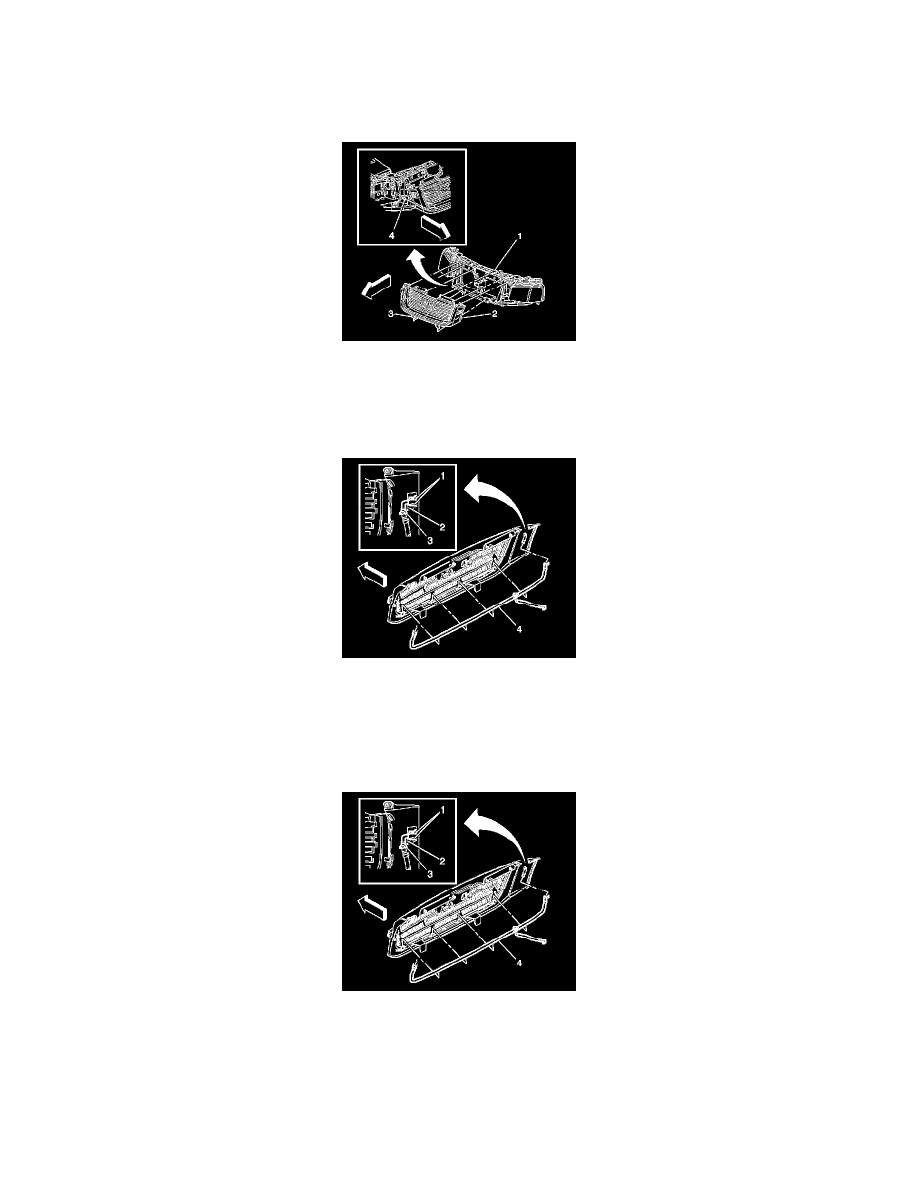

Grille Replacement (Envoy)
Removal Procedure
1. Use a flat-bladed tool in order to release the clips that retain the top of the grille (2) to the headlamp housing panel.
2. Lift the grille (2) out of position.
3. Release the quick-connect (4) on the headlamp washer supply hose.
4. Remove the grille from the vehicle.
5. Place the grille on a clean, prepared surface.
6. Release the quick-connects (3) on the headlamp washer nozzle hoses.
7. Spread the retaining tabs (1) on the grille in order to release the headlamp washer nozzle.
8. Remove the headlamp washer nozzle from the front of the grille.
9. Remove the headlamp washer hose (4) from the grille.
Installation Procedure
Important: Install the quick-connect end first.
1. Install the headlamp washer nozzle through the front of the grille.
2. Push the washer nozzle (2) inward until fully seated in the retaining tabs (1).
3. Install the headlamp washer supply hose (4) to the grille.
4. Connect the quick-connects (3) to the headlamp washer nozzles.
5. Position the grille to the headlamp housing panel.
