Flex Plate: Specifications

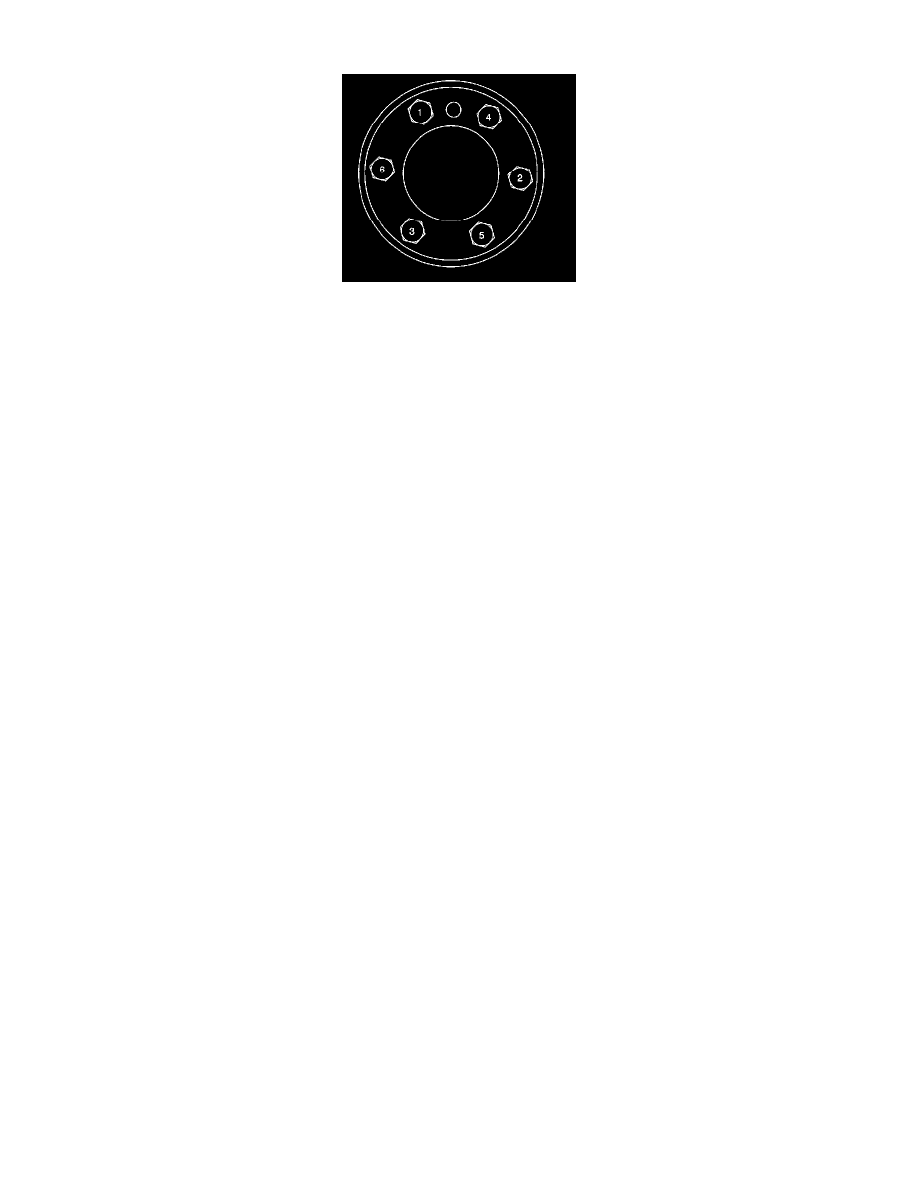

A/T Flex Plate Bolts
First Pass in sequence to ......................................................................................................................................................................... 20 N.m (15 lb ft)
Second Pass in sequence to ..................................................................................................................................................................... 50 N.m (37 lb ft)
Final Pass in sequence to ....................................................................................................................................................................... 100 N.m (74 lb ft)
