Flex Plate: Specifications
- Make
- GMC
- Model
- Savana 1500 AWD
- Engine
- V8-5.3L
- Year
- 2008
- Section
- Flex Plate › Specifications
Flex Plate: Specifications

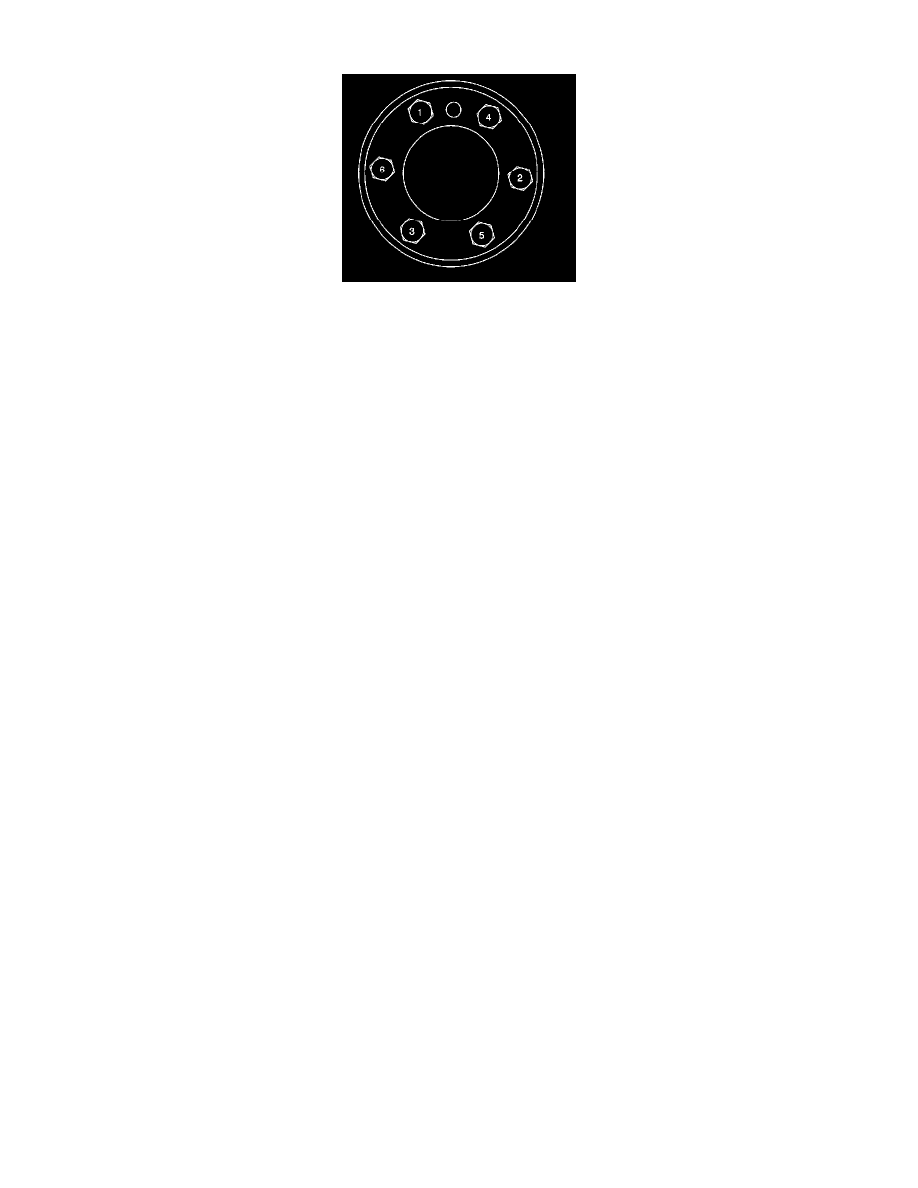

Automatic Transmission Flex Plate Bolts - First Pass ................................................................................................................................. 20 N.m (15 lb ft)
Automatic Transmission Flex Plate Bolts - Second Pass ............................................................................................................................ 50 N.m (37 lb ft)
Automatic Transmission Flex Plate Bolts - Final Pass .............................................................................................................................. 100 N.m (74 lb ft)
