GMC Savana 2500 V8-4.8L (2008)17 · Lighting and Horns
17 · Electrical

Underhood Lamp: Diagrams

Make
GMC
Model
Savana 2500
Engine
V8-4.8L
Year
2008
Section
Underhood Lamp › Diagrams
Lighting and HornsDiagrams · page 1 of 2
background image

Underhood Lamp: Diagrams

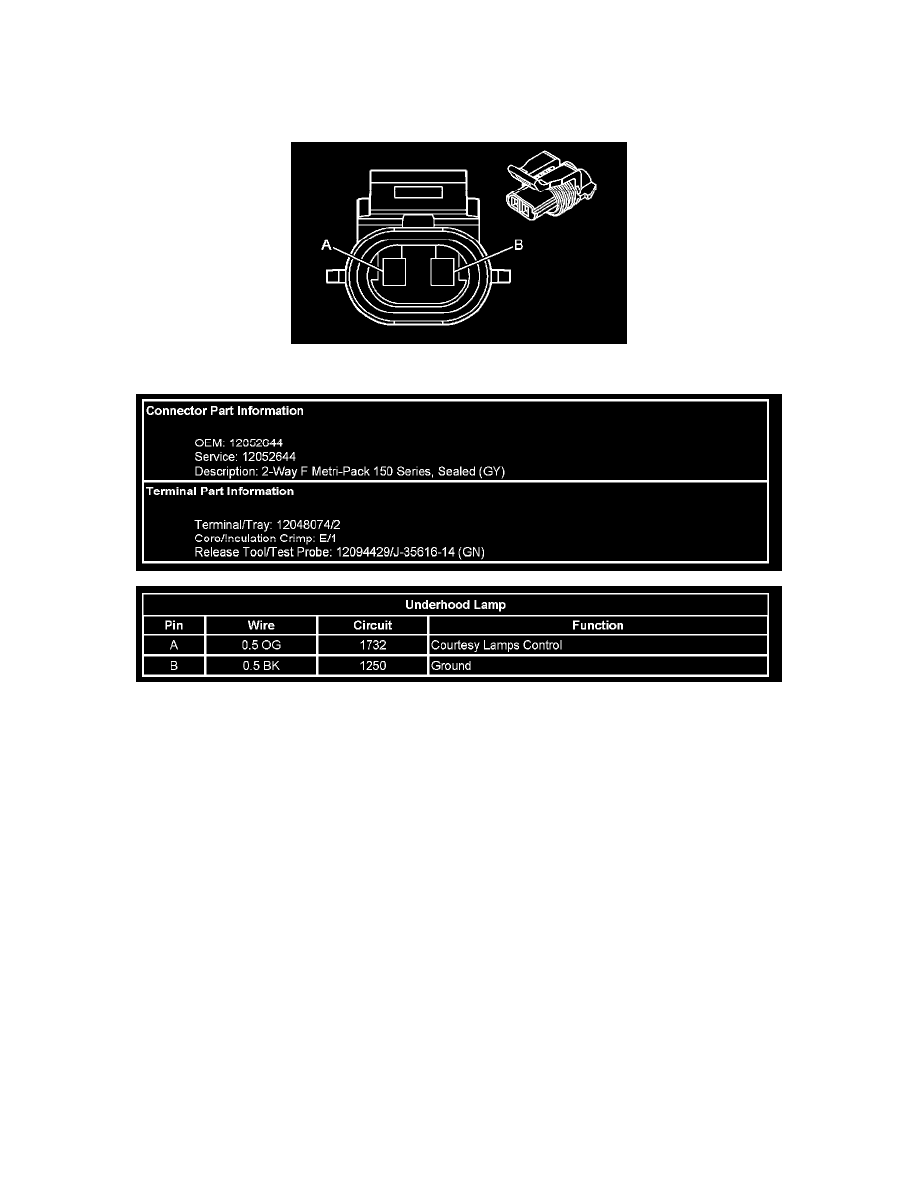

Component Connector End Views - Continued

Underhood Lamp

Reverse Lockout Solenoid

Pinch or Ctrl + scroll to zoom. Double-tap to reset.
