Accord V6-3.5L (2010)
-

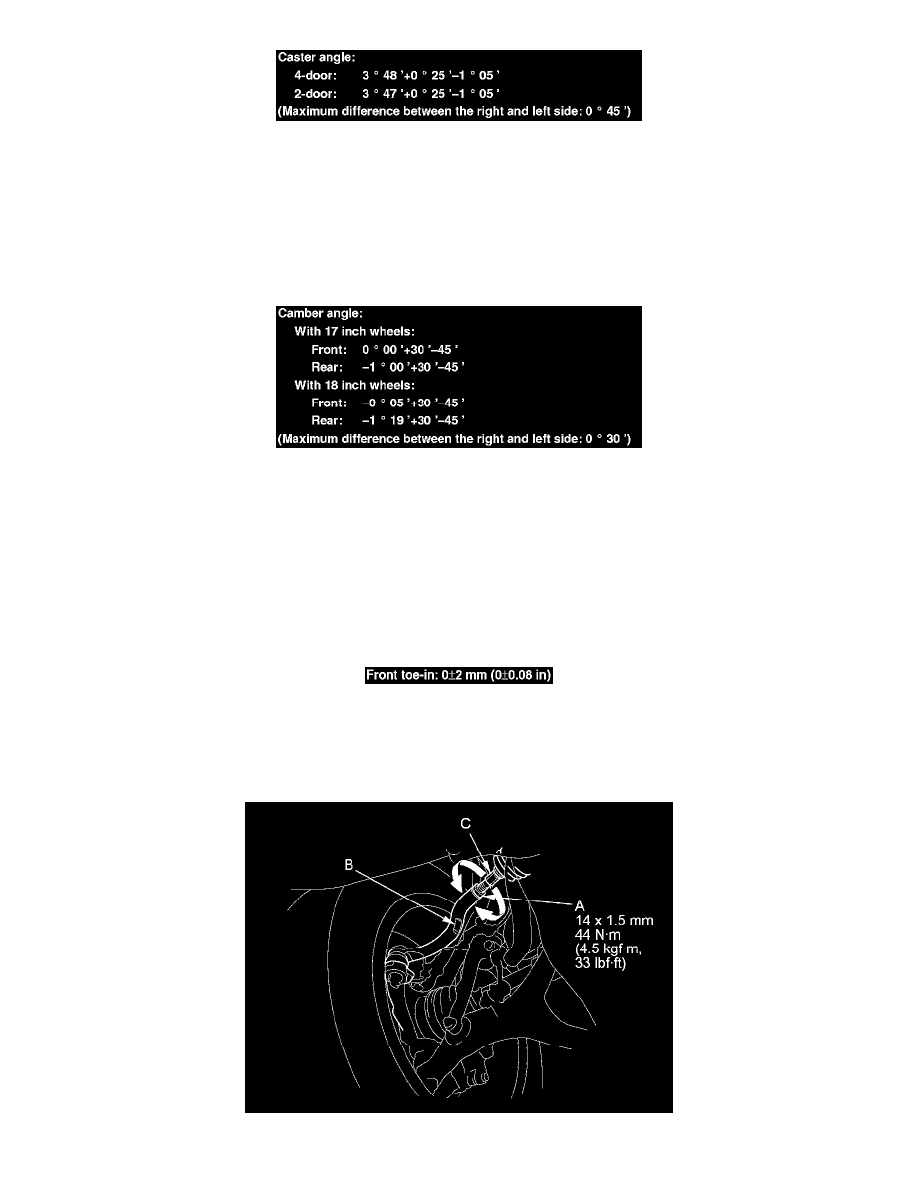

If the measurement is within specifications, measure the camber angle.
-
If the measurement is not within specifications, check for bent or damaged suspension components.
Camber Inspection
Use commercially available computerized four wheel alignment equipment to measure wheel alignment (caster, camber, toe, and turning angle). Follow
the equipment manufacturer's instructions.
1. Check the camber angle.
-
If the measurement is within specifications, measure the toe-in.
-
If the measurement is not within specifications, check for bent or damaged suspension components.
Front Toe Inspection/Adjustment
Use commercially available computerized four wheel alignment equipment to measure wheel alignment (caster, camber, toe, and turning angle). Follow
the equipment manufacturer's instructions.
1. Set the steering column to the middle tilt and telescopic positions. Center the steering wheel spokes, and install a steering wheel holder tool.
2. Check the toe with the wheels pointed straight ahead.
-
If adjustment is required, go to step 3.
-
If no adjustment is required, go to rear toe inspection/adjustment.
3. Loosen the tie-rod locknuts (A) while holding the flat surface sections (B) of the tie-rod end with a wrench, and turn both tie-rods (C) until the
front toe is within specifications.
4. After adjusting, tighten the tie-rod locknuts to the specified torque. Reposition the rack end boot if it is twisted or displaced.
